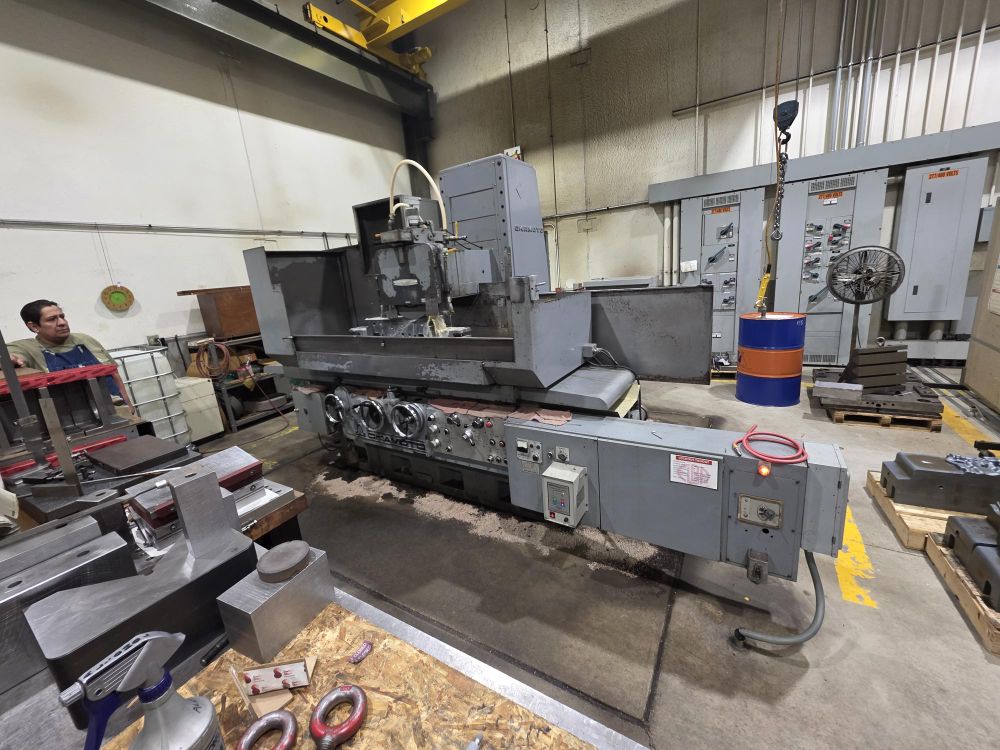

Okamoto PSG-126B

Okamoto PSG-126B
Year: 1979

Grinding Capacity: 24″ x 48″
Maximum Table Movement: 25″ x 51″
Maximum Distance Between Wheel & Table: 27″
Magnetic Chuck Size: 24″ x 46″
Table Load Capacity Including Chuck: 5,470 Lbs
Grinding Wheel Size: 20″ x 2″ x 5″
Wheel Speed: 1,800 RPM
Grinding Wheel Spindle: 20 HP
Electrical Requirements: 230V/460V/3Phz/60Hz/24KVa
Approx. Machine Weight: 15,500 Lbs
Approx. Machine Size: 151″ x 102″ x 100″H

Equipped With:
3-Axis Automatic Feed.
Incremental Downfeed.
Electro-Magnetic Chuck & Rectifier.
Hydraulic Over-The-Wheel Dresser.
High/Low Table Settings.
Spark Out Capability.
Coolant System With Magnetic Separator
