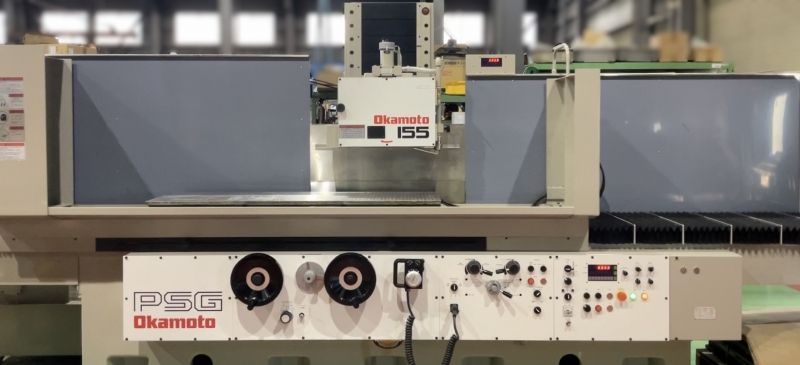

Okamoto PSG-155DX NC Surface Grinding Machine (OH 2025)

Workpiece size: 1500 × 500 × 595 mm
Table travel: 1750 × 560 mm
Table size: 1550 × 500 mm
Distance from table top to bottom of grinding wheel: 595 mm
Chuck size: 1500 × 500 × 100 mm
Allowable work mass (including chuck mass): 2500 kg (555 kg)
Automatic downfeed amount (rough grinding): 0.001–0.05 mm (15 steps rough, 10 steps fine)
Grinding wheel (OD × width × ID): φ510 × 50 × φ127 mm
Grinding wheel speed: 1,100 rpm
Required floor space: 5,500 × 3,010 mm
Machine height: 2,200 mm
Machine weight: 8,000 kg

Features / Equipment:
Vertical feed handle for the grinding wheel head
Upper dresser
Grinding wheel (with flange)
Coolant unit with magnetic separator (120 L)
Hydraulic unit (with automatic oil temperature control)
Tool set
