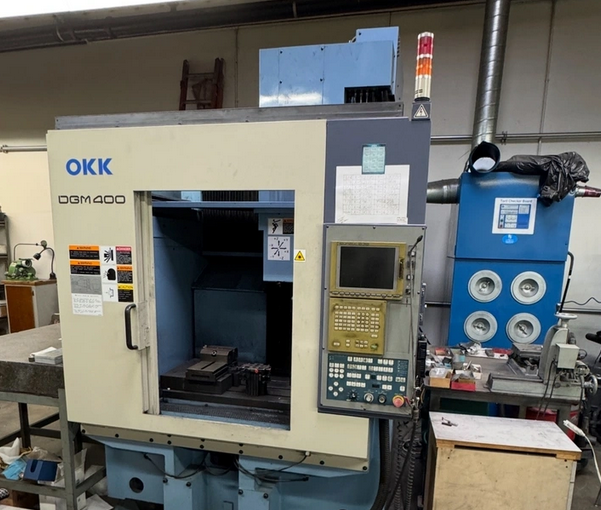

OKK DGM 400 3 Axis

X-Axis Travel 22.2″
Y-Axis Travel 16.1″
Z-Axis Travel 16.1″
Rapid Traverse Rates 1890″/min
Cutting Feed Rates 945″/min
Spindle Nose to Table 5.9″ – 22.05″
Table Length 30.32″
Table Width 18.7″
Number of Std T-Slots 3
T-Slot Width 0.79″
Max Weight on Table 1100 lbs
Spindle Taper BT-30
Spindle Speed 0 – 30,000 RPM
Spindle Type Integral Drive
Spindle Power 10 HP
Automatic Tool Changer Capacity 24
Max Tool Weight 11.6 lbs
Max Tool Diameter 3.54″
Max Tool Length 7.8″
Tool Changing Time 4.5 sec
Control Okk Neomatic 635 CNC
High Speed Spindle 30,000 RPM
Bridge Type Construction
PCMCIA Card Slot
MPG Control
Rigid Tapping
Spindle Chiller
RS-232
Telescopic Way Covers
Misc Tool Holders
Air Required 80 psi, 4 scfm
Power 220V / 35 kVA / 3-Phase
Overall Dimensions 80″ x 90″ x 100″
Weight 11,000 lbs
