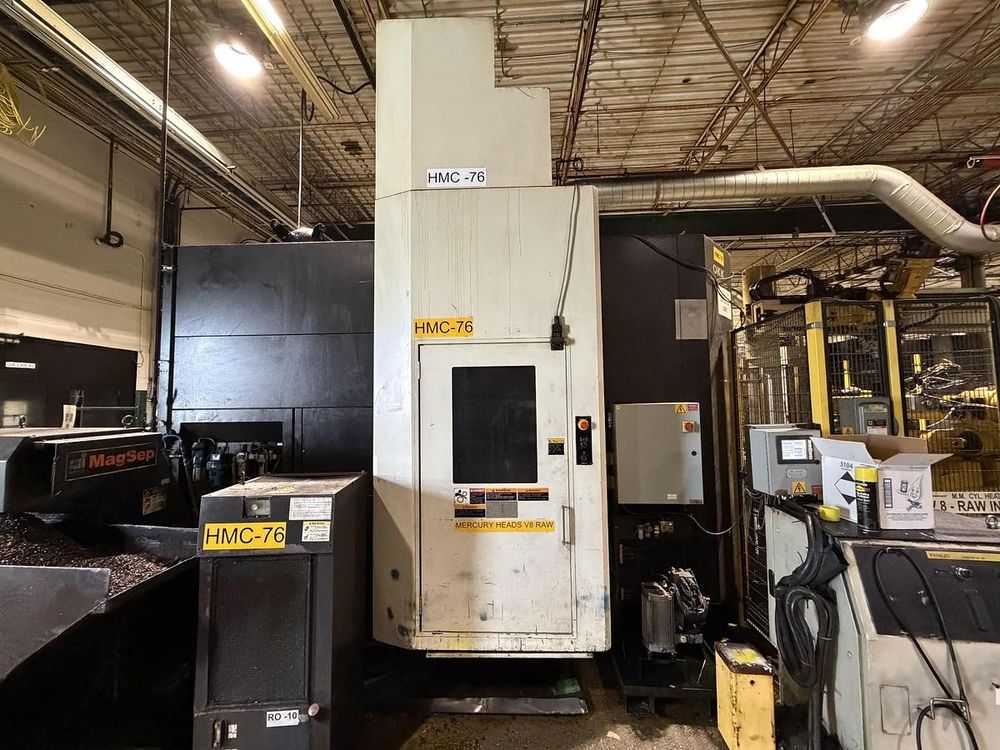

OKK HM600 4 Axis

X-Axis Travel: 1000 mm (39.4")
Y-Axis Travel: 800 mm (31.5")
Z-Axis Travel: 880 mm (34.6")
Rapid Traverse: 30 m/min (1181 ipm)
Control: Fanuc Series 160is-MB CNC
Through Spindle Coolant
Dual Pallet Changer
Coolant Tank
Chip Conveyor
Pallet Size: 630 × 630 mm (24.8" × 24.8")
Maximum Table Load: 1200 kg (2645 lbs)
Spindle Speed: 13,000 RPM
Spindle Motor: 22 kW (30 HP)
Spindle Taper: CAT 50
Tool Capacity: 60
60-Station Automatic Tool Changer
Machine Weight: 18,000 kg (39,683 lbs)
