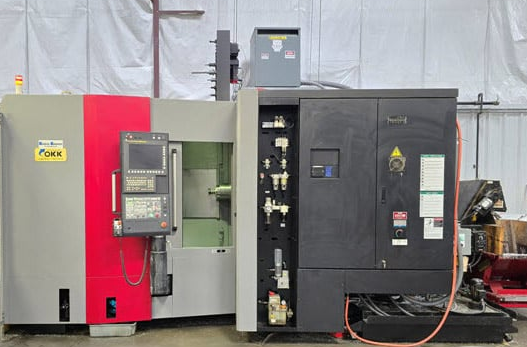

OKK HMC-400 4 Axis

X-Axis Travel: 22.05"
Y-Axis Travel: 22.05"
Z-Axis Travel: 27.17"
Table Top To Spindle Centerline: 3.15-25.20"
Table Center To Spindle Nose: 1.97-29.13"
Pallet Indexing: 0.001 Deg. Rotation
Control: Fanuc Series 31iB CNC Control
Spindle Speed: 15,000 RPM
Spindle Motor: 50 HP
Spindle Taper: CAT40 Big Plus
Number of ATC Stations: 60
Rapid Traverse Rate: 2480 IPM
Rear Discharge Lift Up Chip Conveyor for Aluminum
Built-in 4th Axis Rotary Table
1000 PSI Coolant Thru the Spindle
FA-J919 Work Coordinate System, Additional 300 Sets
Tool Breakage Detection in the Magazine
Fanuc CS Contouring Control for Broaching
Custom Macro B, 82 Variables
Memory Increase to 4,199 ft
Programmable Mirror Image
Registerable Programs Increase to 1000 Sets
Run Hour and Parts Counter Display
Tool Life Management (256 Sets)
Tool Offsets Increase to 200 Sets Total
Constant Hydraulic Fixturing Coupling (6 Port/Pallet)
