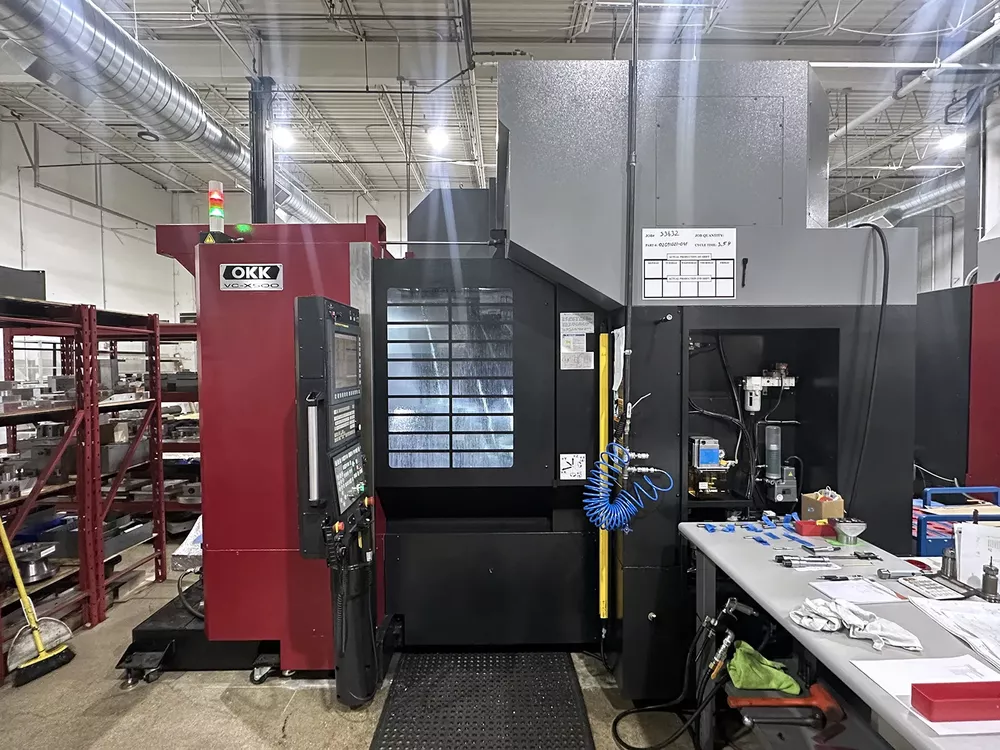

OKK VC-X500 5 Axis

X-axis travel: 27.56"
Y-axis travel: 33.46"
Z-axis travel: 24.02"
A-axis travel: -120° to +30°
C-axis travel: 360°

Control: Series 31i-Model B5
Spindle speed: 100–12000 rpm
Spindle nose: CAT 40 Big Plus
Spindle bearing bore diameter: 2.56"
ATC: 60
Table work surface area: 19.69" × 19.69"
Max workpiece weight loadable on table: 1102 lbs
Distance from table top surface to spindle nose: 5.91"–29.92"
Distance from column front to spindle center: 20.87"
Distance to table work surface from floor: 42.52"

Features / Equipment

Simultaneous 5-axis
Spindle taper CAT 40 Big Plus
Renishaw OMM probe
Spindle chiller
Tool presetter
Coolant filtration unit
Chip conveyor
1000 PSI spindle thru coolant
Mist collector
Sensor door
