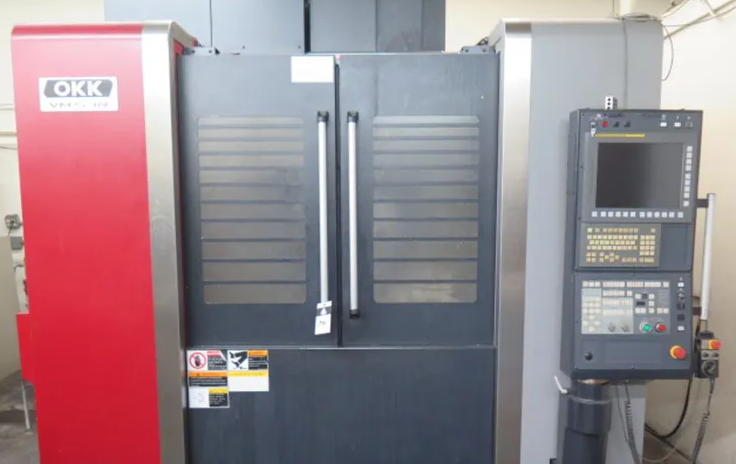

OKK VM53R 3 Axis

X-Axis Travel 41.3"
Y-Axis Travel 20.8"
Z-Axis Travel 20.1"
Table Top to Spindle Nose 5.9" - 26.0"
Table Work Surface Area 41.3" x 22.1"
Table Load Capacity 1,764 lbs
Spindle Power 25/20 HP
Spindle Speed 10,000 RPM
Spindle Taper CAT40
Standard Number of Tools 30
Maximum Tool Weight 44 lbs
Maximum Tool Length 13.8"
Maximum Tool Diameter ø 4.06" / ø 7.87" without adjacent tools
Tool Changing Time 2.0 sec
Rapid Traverse Rate X/Y 1,181 in/min
Rapid Traverse Rate Z 787 in/min
Cutting Feed X/Y/Z 787 in/min
Machine Weight 17,600 lbs
Machine Control FANUC F31i-B
