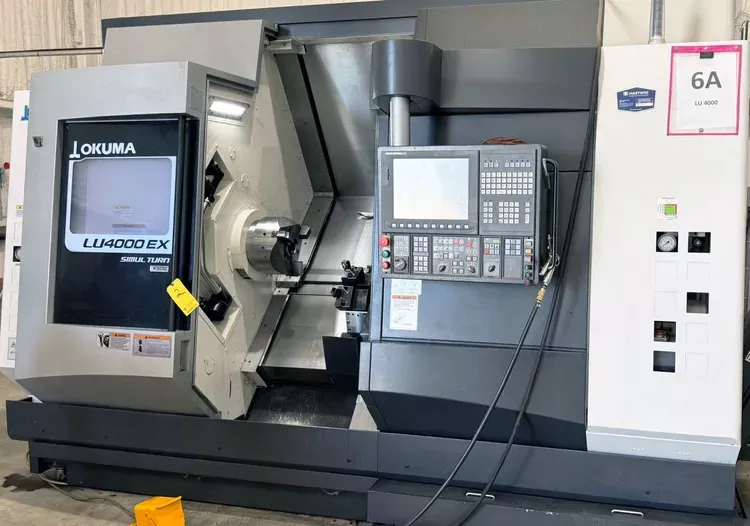

Okuma 0SP - P 300L CNC Color Control 3,000 RPM LU4000 EX-MY 2SC/650 6 Axis

X1 Axis Travel: 11.81"
X2 Axis Travel: 7.68"
Y1 Axis Travel: 5.51"
Z1 Axis Travel: 29.13"
Z2 Axis Travel: 27.56"
C Axis Indexing 1: 0.00
Spindle Bore Diameter 1: 4.41"
Bar Capacity 1: 4"
Spindle Speeds 1: 3,000 RPM
Spindle Horsepower 1: 45 HP
Turret Tool Positions 1: 12 station
Turret Rotary Tool Speeds 1: 6,000 RPM
Turret Rotary Tool Horse Power 1: 7.5 HP
Turret Tool Positions 2: 10
Tailstock Quill Diameter: 4.72"
Tailstock Taper: 5
Tailstock Quill Travel: 5.91"
Rapid Traverse Rate X1: 985 IPM
Rapid Traverse Rate X2: 985 IPM
Rapid Traverse Rate Z1: 1,168 IPM
Rapid Traverse Rate Z2: 1,168 IPM
Rapid Traverse Rate Y1: 492 IPM
Chuck Size 1: 12"
Spindle Nose 1: A2-11
Distance Between Centers: 225.59"
Swing Over Bed: 27.36"
Turning Diameter: 16.93"
Turning Length: 25.56"

0SP - P 300L CNC Color Control
Program Restart / Inverse Time Feed
Manual Pulse Generator
Chip Conveyor Right Discharge
Auto Power Off
Full Complement of Static and Rotary Holders
12" 3 Jaw Hydraulic Chuck with 4" Bar Capacity
Advanced One Touch On Board Programming and One Touch - PST
Big Bore Spindle Option A2-11, 4.41" Spindle Bore 3000 RPM
Tailstock Auto Tow Along
Touch Tool Setter Manual
Hi/Low Coolant Pressure Switchable
Coolant Level Check Low
Spare M Codes 4 Sets
Negative Tool Radius Compensation
Y-Axis Off Center Turning Function
Chip Conveyor
Temperature Regulator
Helical Cutting X, Y, Z Axis
