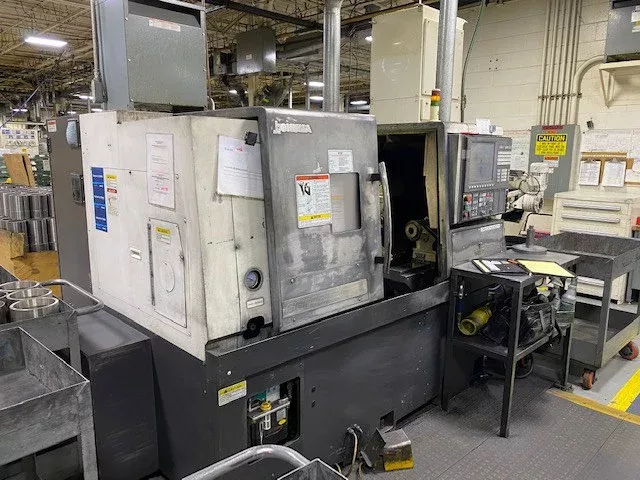

Okuma CNC CONTROL 3000 RPM GENOS L400 2 Axis

OKUMA GENOS L400
Year: 2014

Swing Over Bed: 20.47"
Turning Diameter: 15.3"
Machining Length: 19.6"
Distance Between Centers: 22"
Chuck Size: 10"
Spindle Nose: A2-8
Spindle Bore Diameter: 3.14"
Spindle Bar Capacity: 2.6"
Spindle Speed: 3000 RPM
Spindle Horsepower: 15 HP
X-Axis Travel: 8.6"
Z-Axis Travel: 20.4"
Rapid Traverse Rate X: 788 IPM
Rapid Traverse Rate Z: 985 IPM
Turret Configuration: 12 stations
Tailstock Quill Diameter: 3.54"
Tailstock Taper: MT 5
Tailstock Quill Travel: 3.9"
Machine Weight: 10,120 lbs

Chip conveyor
Chuck grasp confirm
Custom API
Tool wear compensation
Tool life management
Turret position compensation
Cycle time check and calculation
Load monitor
Thermal compensation L2
Spindle orientation
OSP-P300L-R CNC control
New 10" 3-jaw hydraulic chuck
6-jaw hydraulic chuck
