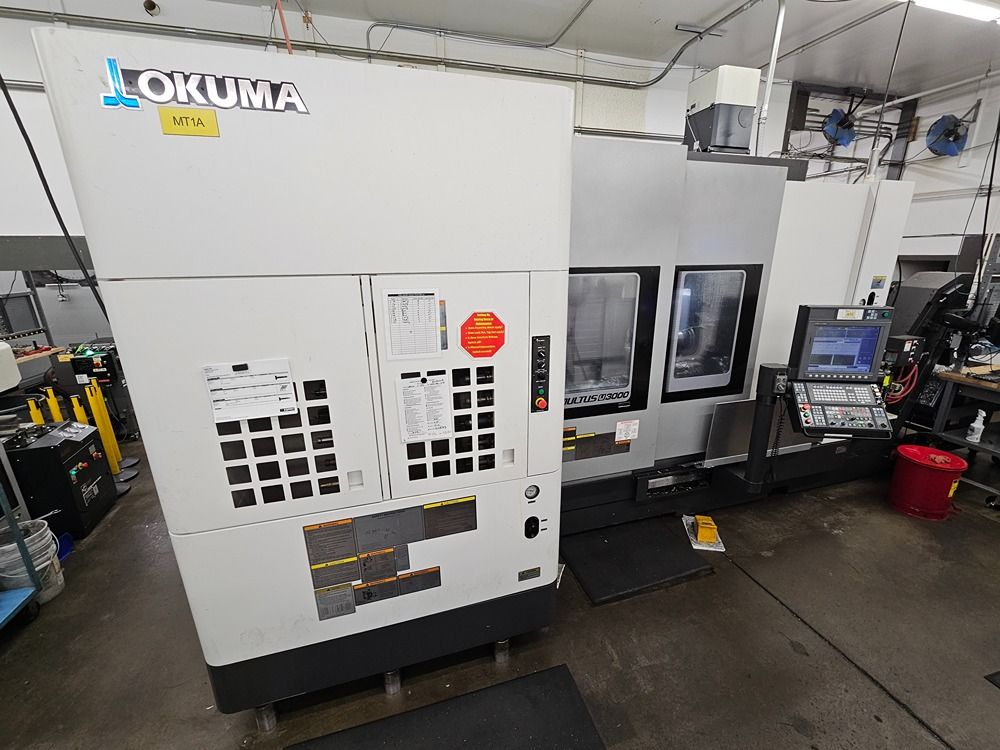

Okuma CNC CONTROL 5,000 RPM Multus U3000 8 Axis

Okuma Multus U3000
2016

X-Travel: 25.39"
Z-Travel: 62.99"
X2 Axis Travel: 9.25"
Z2 Axis Travel: 62.36"
Y-Axis Travel: 9.84" (+/- 4.92")
W-Axis Travel: 62.36"
B-Axis Travel: -30° to +210°
C-Axis Travel: 360°

Distance Between Centers: 59"
Max Turning / Cutting Length: 59.06"
Max Cutting / Turning Diameter: 25.59"
Bar Capacity: 4.72"
Chuck Size: 10.0"
Chuck Type: Hydraulic

Spindle Bore: 4.00"
Spindle Speed: 5,000 RPM
Spindle Motor: 30 HP
Spindle Nose: A2-8
Total Spindles: 2
Sub-Spindle: Equipped With

Second Bar Capacity: 3.94"
Second Chuck Size: 10.0"
Second Spindle Bore: 2.44"
Second Spindle Speed: 5,000 RPM
Second Spindle Motor: 30 HP
Second Spindle Nose: A2-6

Tool Positions: 120
Twin Turret: Equipped With
Second Turret Live Tooling: Equipped With
Control Make/Model: Okuma OSP-P300SA CNC Control
Tailstock: Equipped With
Tool Presetter
Mist Collector

Big Bore Package (A2-8)
Chuck Hi/Lo Pressure on Both Spindles
Prepped for Mist Collector
Fox WS700 Mist Collector
NC B-Axis
Coolant Types: Thru-Spindle Coolant
High Pressure Coolant
High Pressure Coolant PSI: 1,000 PSI
Chip Conveyor
Renishaw Probe
