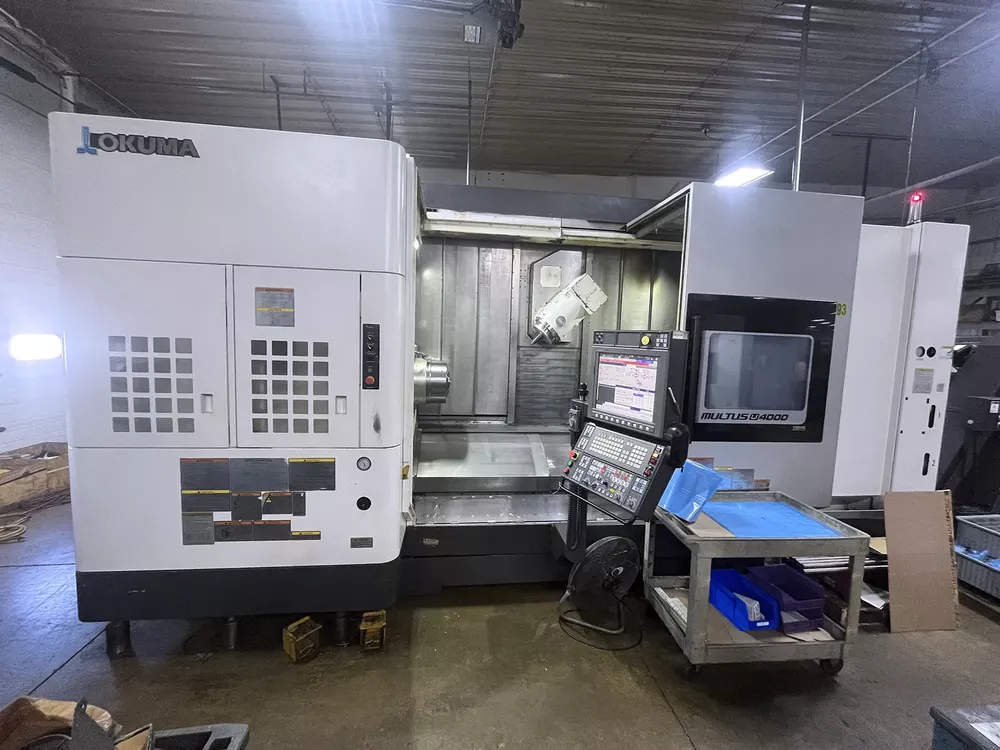

Okuma CNC control OSP-P300S-H 3000 rpm MULTUS U4000 2SW/2000 6 Axis

X-axis travel upper saddle 27.4 in
X-axis travel lower saddle 9.3 in
Y-axis travel ±5.9 in
Z-axis travel 80 in
W-axis travel sub-spindle 79.7 in
B-axis range -30° to +210°
B-axis resolution 0.001°
C-axis main spindle
C-axis sub-spindle
CNC control OSP-P300S-H
NC B-axis contouring
5-axis machining kit
High-pressure coolant system 1000 psi
Hydraulic oil temperature regulator
Bar capacity 5.5 in
Maximum turning diameter 25.6 in
Distance between centers 93.3 in
Maximum turning length 80 in
Main spindle nose A2-11
Main spindle bore 5.5 in
Main spindle speed 3000 rpm
Main spindle power 30 hp continuous
Main spindle power 43 hp peak
Sub-spindle
Lower turret with milling function
ATC capacity 80 stations
Tool interface Capto C6
Chip conveyor
Chip blaster coolant system
Big bore configuration
Negative tool radius compensation
