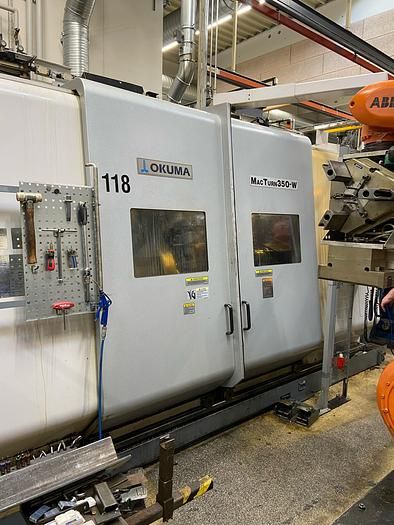

Okuma Control OSP-E100L 6,000 rpm MACTURN 350-2SW-1500 3 Axis

X-axis travel 190 mm (+95/-95 mm)
Max. turning length 1,500 mm
Max. turning diameter 550 mm
B-axis indexing 0.001 deg.
Spindle speeds main spindle 38-5,000 rpm
Spindle bore main spindle 70 mm
Spindle speeds subspindle 50-6,000 rpm
Spindle bore subspindle 80 mm
Spindle speed mill spindle (B-axis) 200-6,000 rpm
Tool changer 76 stations
Upper turret 12 stations (HSK 63) & rotating tool stations 6,000 rpm
Lower turret 12 stations (VDI) & rotating tool stations 5,000 rpm
Hydraulic chuck on main & subspindle (Rota 250 mm)
Chip conveyor with chip tray
Air blowing on both spindles
Automatic measuring incl. wireless
High pressure coolant through spindles
Touch setter
