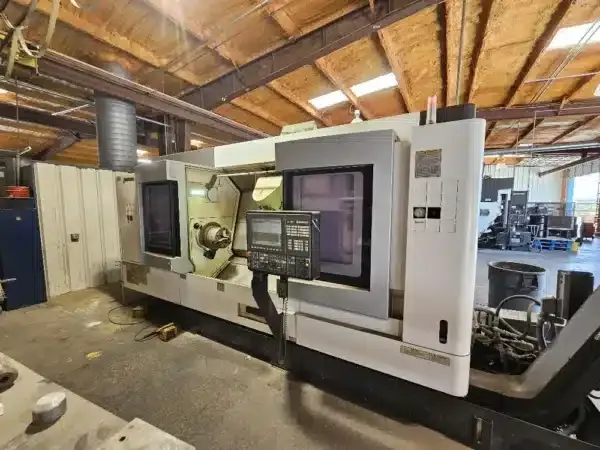

Okuma Control: OSP P300S CNC 3800 rpm MULTUS B400IIW/1500 5 Axis

X axis travel: 27.17 in
Y axis travel: 9.02 in
Z axis travel: 60.83 in
B axis: 225°
C axis indexing: 0.001°
Hi-Cut Pro
Hi-G Control
Admac 3D Virtual Monitor
Full contouring B-axis universal head
Touch setter
Touch sensor
H1 turret
Maximum swing over saddle: 27.95 in
Maximum machining diameter: 27.95 in
Maximum working distance between spindles: 59.06 in
Spindle bore: 4.33 in
Spindle nose: A2-11
Main spindle motor: 40 HP
Spindle speed: 38–3800 rpm
Sub spindle
Live tooling motor: 14 HP
Live tooling speed: 90–6000 rpm
Main spindle chuck: 12 in Kitagawa 3-jaw power chuck
Sub spindle chuck: 12 in Kitagawa 3-jaw power chuck
Tool magazine: 80 stations
Capto C6 ATC
Machine dimensions: 193 × 108 × 108 in
Chip conveyor dimensions: 200 × 49.5 × 72 in
Chip Blaster dimensions: 25.5 × 54 × 80 in
Spindle chiller dimensions: 40.5 × 14.25 × 39 in
Oil cooler dimensions: 17.75 × 17 × 39 in
Weight: 34,000 lb
Lathe tool indexing
Chip Blaster included
1000 PSI through-spindle coolant
Elevated chip conveyor
2 tooling carts with tooling
Power on hours: 8477
Running hours: 379
Spindle hours: 220
Cutting hours: 231
