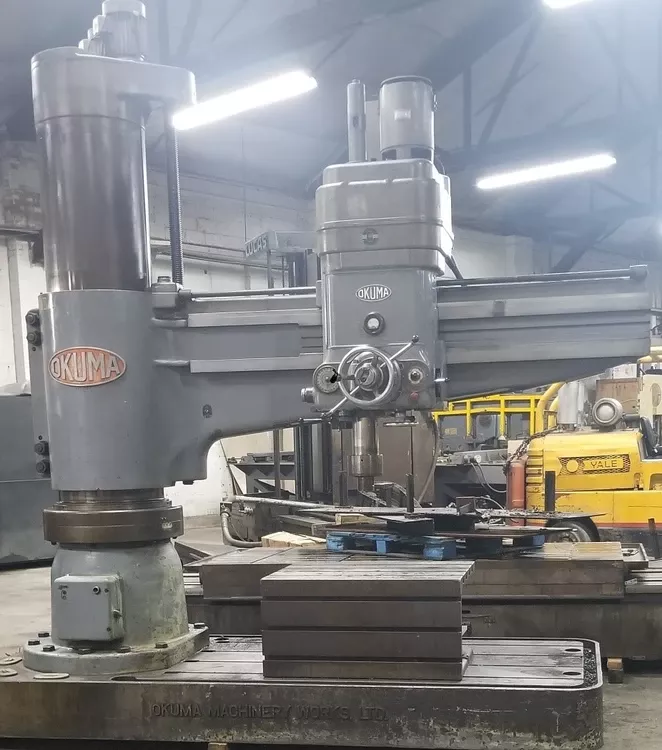

Okuma DRA-J-550 X 2000 2240 RPM

Arm length: 7'
Column diameter: 22"
Spindle motor: 10 HP / 7.5 kW
Spindle speed range: 18–2240 RPM
Number of spindle speeds: 16
Spindle feeds: 0.001–0.050
Number of spindle feeds: 18
Maximum drilling diameter: 3" steel, 3.5" cast
Distance from column to spindle: 78.7"
Distance from spindle to base: 74" max
Spindle taper: Morse #5
Quill diameter: 5"
Spindle travel: 17"
Box table size: 39.5" x 29.5" x 19.5"
Power elevation
Power clamping on column
Tool eject on spindle
Coolant system
Work light
Machine wired: 440V / 3 phase
Overall dimensions: 146" x 130" x 52"
Machine weight: 25,400 lbs
Manuals included
