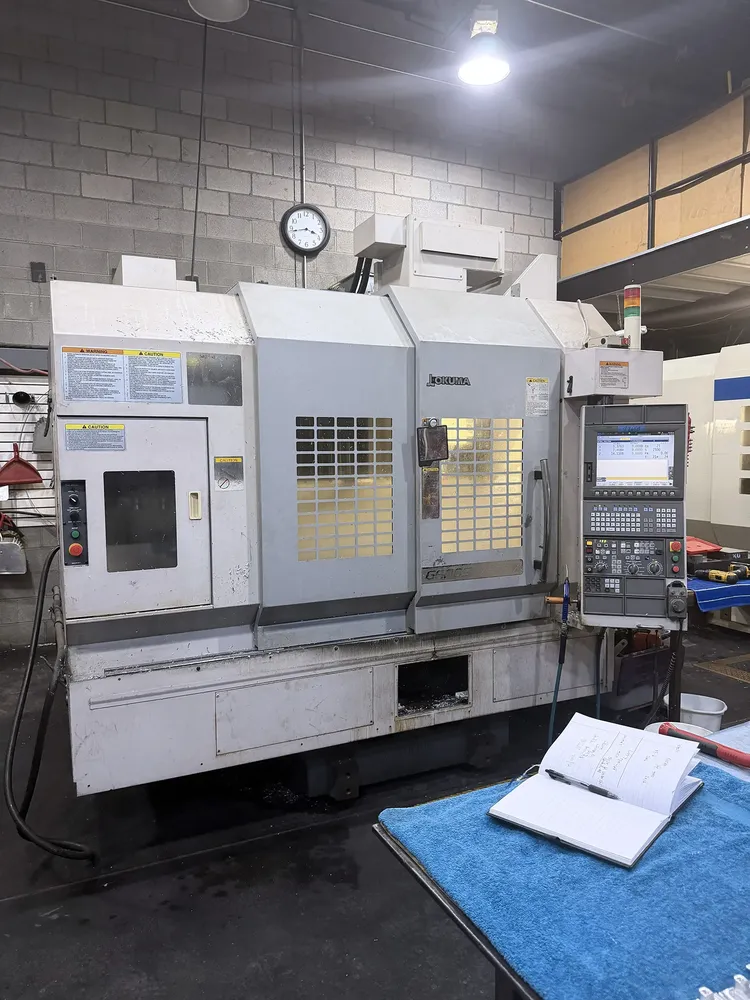

Okuma GENOS 560V 3 Axis

X-axis travel: 1,050 mm (41.34")
Y-axis travel: 560 mm (22.05")
Z-axis travel: 460 mm (18.11")
Control: OSP-P200M
Coolant tank capacity: 230 L
Table size: 1,300 × 560 mm (51.18 × 22.05")
Maximum table load: 900 kg (1,980 lb)
Spindle speed: 12,000 rpm
Spindle motor: 30 hp (25 kW)
Spindle taper: CAT 40 Big Plus
Rapid traverse (X/Y): 40 m/min (1,575 ipm)
Rapid traverse (Z): 32 m/min (1,262 ipm)
32-tool arm-type ATC
Maximum tool length: 11.8"
Maximum tool diameter: 4.9"
Maximum tool weight: 18 lb
Spindle nose to table distance: 150–610 mm (5.91–24.02")
Machine weight: ~8,000 kg (18,260 lb)
Misc. tooling
