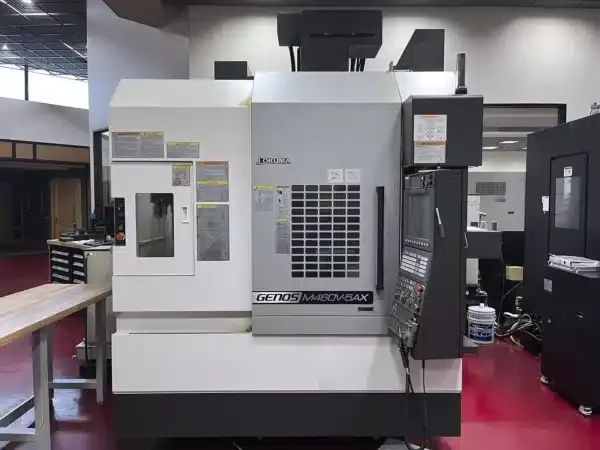

Okuma GENOS M460V-5AX 5 Axis

X-AXIS TRAVEL 30″
Y-AXIS TRAVEL 18.11″
Z-AXIS TRAVEL 18.11″
A-AXIS TRAVEL 20 to -110 degrees
C-AXIS TRAVEL 360 degrees
Simultaneous 5 Axis Capability
Renishaw RMP60 probing system
Coolant Thru Spindle (300 PSI)
Chip Conveyor
Spindle Chiller
TABLE SIZE 15.75″
MAX WORK SIZE 23.62″ (Diameter) X 15.75″ (Height)
MAX LOAD CAPACITY 660 lbs
SPINDLE SPEED 15,000 RPM
SPINDLE MOTOR 30/25 HP
SPINDLE TAPER CAT 40 Big plus
CAT 40 Big Plus Tool Shank
TABLE SURFACE TO SPINDLE NOSE 3.94″ to 22.05″
RAPID TRAVERSE X,Y 1575 ipm
RAPID TRAVERSE Z 1260 ipm
CUTTING FEEDRATE 1260 ipm
ATC CAPACITY 32
FLOOR TO TABLE TOP 41.34″
