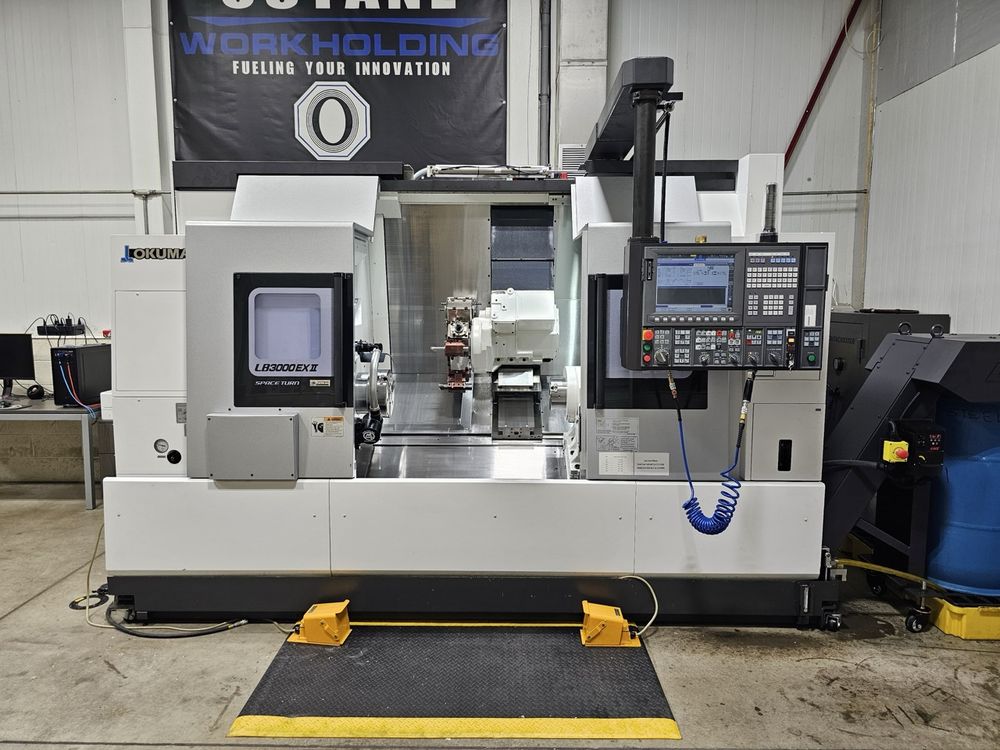

Okuma LB3000EX2-MYW 800 3 Axis

OKUMA LB3000EX2-MYW 800
Year: 2022

Swing Over Way Covers: 22.83"
Swing Over Saddle: 18.5"
Max Turning Diameter: 13.39"
Max Turning Length: Not listed
Main Spindle Power: 30 HP (22 kW)
Main Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Spindle Bore: 3.15" (80 mm)
Sub-Spindle Diameter: Ø140 mm
Sub-Spindle Power: 15/10 HP
Sub-Spindle Speed: 50–6,000 RPM
Sub-Spindle Torque: 83 ft-lbs
Sub-Spindle Through Bore: 1.77"
Tool Turret: 12-position NC multitasking turret
Turret Index Time: 0.1 sec
Milling Capacity: 3.7 in³/min
Milling Spindle Power: 9.5 / 5.5 HP
X-Axis Travel: 10.24"
Z-Axis Travel: 39.76"
Y-Axis Travel: +2.76" / -1.77"
X-Axis Rapid Traverse: 984 IPM
Z-Axis Rapid Traverse: 1,181 IPM
Y-Axis Rapid Traverse: 492 IPM
X-Axis Ball Screw Diameter: 1.26"
X-Axis Servo Power: 4.7 HP
Z-Axis Ball Screw Diameter: 1.57"
Z-Axis Servo Power: 6.1 HP
Y-Axis Servo Power: 4.6 HP
Way Type: Hardened and ground box ways (X, Y, Z)
Machine Dimensions: 138" L x 80" W x 98" H
Machine Weight: 17,500 lbs

Spindle Cutting Time: 77 hours 35 minutes
Live Tooling Time: 173 hours 46 minutes

Y-Axis
Live Tooling
Sub-Spindle
Kitagawa Chucks Included
LNS Turbo Conveyor Included
Auto Door w/ Dual Cycle (1-Y0601-01)
Tool Setter
RPD Traverse (1-Y1366-00)
Robot ABX Interface (1-Y1114-00)
Tooling Package available at discounted rate
