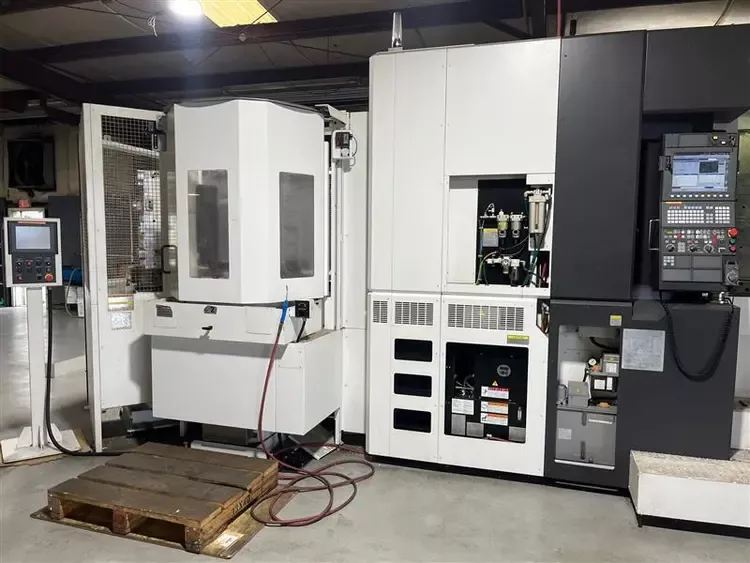

Okuma MA-600 3 Axis

X-axis travel: 39.3"
Y-axis travel: 35.4"
Z-axis travel: 39.3"
B-axis travel: .001°
Rapid traverse rate X: 2,362 in/min
Rapid traverse rate Y: 2,362 in/min
Rapid traverse rate Z: 2,362 in/min
Control: OKUMA OSP P300MA CNC color control
Number of pallets: 6
Pallet size L: 24.8"
Pallet size W: 24.8"
Pallet weight capacity: 2,640 lb
Pallet surface to spindle center: 1.96"–37.4"
Pallet center to spindle gage line: 2.7"–42.13"
Workpiece dimensions: 39.37" × 39.37"
Spindle speed: 12,000 RPM
Spindle taper: HSK A100
Spindle motor: 40 hp
Number of ranges: 2
Automatic tool changer: 171
Tool diameter: 5.3", 9.4"
Tool length: 17.7"
Tool weight: 55 lb
Machine weight: 57,200 lb

OSP P300MA CNC color control
6 auto pallet changing system
Animation, program help, Hi-G, cycle time reduction
Helical interpolation, direct positioning, skip function
Work coordinate change
Playback IMAP, help, area machining
4-axis control
Angle 1/10,000 index table B
Add axis name B, SSU-R
4-axis B fix
Touch sensor move
Thermal compensation
Coolant through spindle
Spindle air blow
Filtration unit
Chip conveyor
Coolant chiller unit
Synchronous tapping
Tool life management
Tool data 200
All manuals included
High-pressure coolant through spindle 1000 PSI
Shower coolant/gun wash APC side
Synchronous control Y
Backlash compensation
Tape storage 320M
APC pallet wait rotation
APC safety guard
Pallet SI watch
ATC auto door
Sub-program
Add-pattern cycle
Point calculation
Hi-cut pro
3D R-simulation
Sequence stop
Coordinate calculation
Area machining
Coordinate conversion
Program limit
Playback (IMAP)
PFC2/WCS2
DNC T1
Common variable 200 sets
Graphic IMAP
Hi-G
NC operation monitor
Servo link NC axis
Servo link S axis
4-axis B fix
Renishaw part probe RMP 600
Inverse time feed function
Machining Navi M-G
