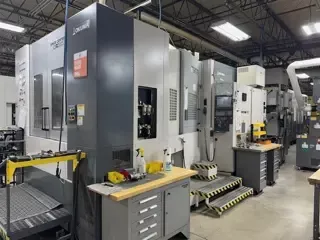

Okuma MA 600HB 4 Axis

OSP P200MA CNC color control
Animation
Program help
High-G
320-meter tape storage
Cycle time reduction
Helical interpolation
Direct positioning
Skip function
Change work coordinate
Playback IMAP
IMAP
Area machining
4-axis control
Angle 1/10,000 index table B
Add axis name B
SSU-R
4-axis B fix
Touch sensor move
Thermal compensation
Coolant through spindle
Spindle air blow
Filtration unit
Chip conveyor
Coolant chiller unit
Synchronous tapping
Tool life management
Tool data 200
Shower coolant/gun wash APC side
Sync control Y
Version backlash
APC pallet wait rotation
APC safety guard
Pallet SI watch
ATC auto door
Sub-program
Add-pattern cycle
Point calculation
Hi-Cut Pro
3D R-simulation
Sequence stop
Coordinate calculation
Coordinate conversion
Program limit
PFC2/WCS2
DNC T1
Common variable 200 sets
Graphic IMAP
NC operation monitor
Servo link NC axis
Servo link S axis
Renishaw part probe
Renishaw tool measurement probe
Chip blaster 1000 PSI coolant through spindle
Mist blaster
All available manuals

Technical Data:
X-axis travel: 39.3 inch
Y-axis travel: 35.4 inch
Z-axis travel: 39.3 inch
B-axis travel: 0.001 degree
Rapid traverse X: 2,362 in/min
Rapid traverse Y: 2,362 in/min
Rapid traverse Z: 2,362 in/min
Control: OKUMA OSP P200MA CNC color control
Pallet size (L x W): 24.8 x 24.8 inch
Number of pallets: 2
Pallet weight capacity: 2,640 lb
Pallet surface to spindle center: 1.96 - 37.4 inch
Pallet center to spindle gage line: 2.7 - 42.13 inch
Workpiece dimensions: 39.37 x 39.37 inch
Spindle speed: 6,000 RPM
Spindle taper: 50
Number of spindle speed ranges: 2
Main motor: 40 HP
Automatic tool changer: 240 tools
Tool diameter: 5.3 inch / 9.4 inch
Tool length: 17.7 inch
Tool weight: 55 lb
Machine weight: 57,200 lb
