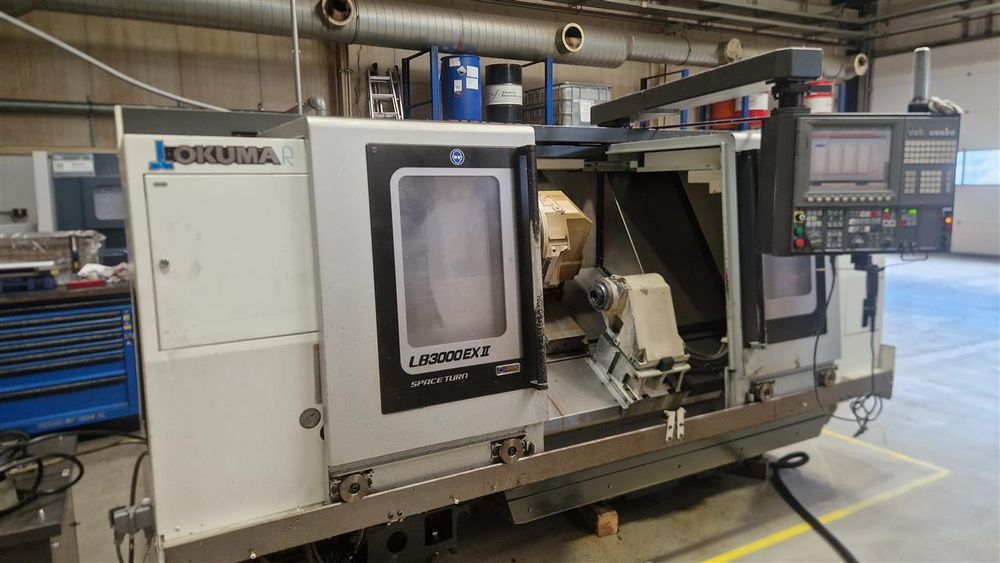

Okuma MAPPS III Control 5,000 1/min LB 3000 EX II-M C1000 SpaceTurn 2 Axis

X-Axis Travel 260 mm
Z-Axis Travel 1,065 mm
Rapid Travel Longitudinal 30 m/min
Rapid Travel Face 25 m/min
Swing Diameter Over Cross Slide Guide 470 mm
Maximum Swing Diameter Over Bed Cover 580 mm
Bar Material Diameter 52 mm
Spindle Diameter 80 mm
Spindle RPM 5,000 1/min
Spindle Drive 22 / 15 kW
Turret Stations 12
Rotary Tool Stations 12
VDI 40 Tooling
Speed of Driven Tools 6,000 1/min
Tailstock Programmable
Tailstock Travel 1,015 mm
Tailstock Quill Taper MT 5
Total Power Requirement 38.7 kVA
Weight of the Machine 6,500 kg
Dimensions of the Machine 4 x 2.5 x 2 m
Memory 2 GB USB 2.0 Interface
Power Chuck Kitagawa B 206 150 mm
Chip Conveyor
Signal Lamp 2 Colors
Manual Tool Eye
High Precision Turning and Milling Centre
Turret for Milling Tools
C-Axis Main Spindle
MAPPS III Control
Programmable Tail Stock
High Pressure Coolant System 20 l / 5 bar
