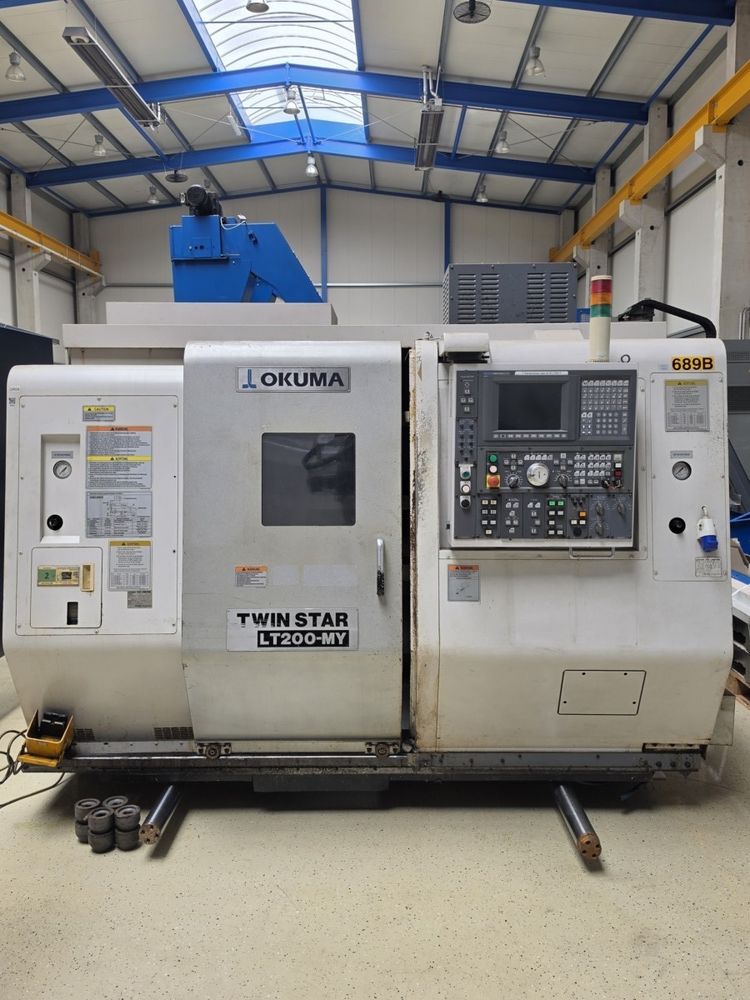

Okuma Okuma OSP-E100L 6,000 RPM LT 200-MY 5 Axis

X-Axis Travel: 167 / 192 mm (XA + XB)
Y-Axis Travel: 92 mm (+50/-42 mm)
Z-Axis Travel: 700 / 700 mm (ZA + ZB)
W-Axis Travel: 940 mm
Rapid Traverse X-Axis: 30,000 mm/min
Rapid Traverse Y-Axis: 15,000 mm/min
Rapid Traverse Z-Axis: 40,000 mm/min
Rapid Traverse W-Axis: 40,000 mm/min
C-Axis Indexing: 360° x 0.001°
C-Axis Rapid Traverse: 400 RPM
Control: Okuma OSP-E100L
Turning Diameter: 210 mm
Turning Length: 700 mm
Swing Over Bed: 400 mm
Distance Between Spindle Noses: 960 mm
Main Spindle Bore: 53 mm
Main Spindle Speed: 50 - 6,000 RPM
Main Spindle Motor: 11 / 7.5 kW
Sub Spindle Nose: JIS A2-6
Sub Spindle Speed: 38 - 5,000 RPM
Sub Spindle Motor: 11 / 7.5 kW
Driven Tool Power: 4 kW
Turrets: 2
Turret Stations: 2 x 12
Tool Holder Mount: VDI 30
C-Axis
Y-Axis
Sub Spindle
Driven Tools
Bar Capacity: 53 mm
Chip Conveyor
Coolant System
Collet Chuck for Main Spindle
Collet Chuck for Sub Spindle
Tool Holders Included on Both Turrets
Machine Documentation
FMB Turbo 5-42/6200/A Bar Loader
Total Power Requirement: 35.7 kVA
Machine Dimensions: 2660 x 2000 x 2330 mm
Machine Weight: 7100 kg
