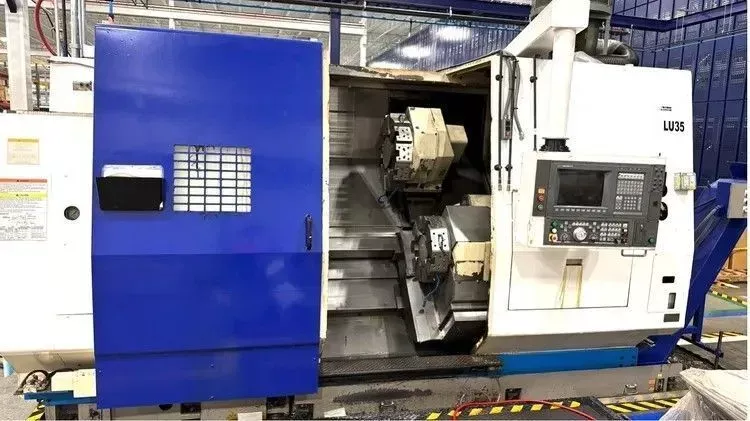

Okuma Okuma OSP P100L CNC 3200 rpm LU 35 2SC / 850 4 Axis

X1-axis travel: 14.96″
X2-axis travel: 9.84″
Z1-axis travel: 36.22″
Z2-axis travel: 34.45″
Rapid feed X1: 591 in/min
Rapid feed X2: 591 in/min
Rapid feed Z1: 7876 in/min
Rapid feed Z2: 787 in/min
4-axis configuration

Control: Okuma OSP P100L CNC
Chip conveyor
Mist collector

Bar capacity: 3″
Swing over bed: 29.13″
Max turning diameter: 21.65″
Max turning length: 33.46″

Spindle speed: 3200 rpm
Spindle power: 50 HP
Spindle nose: A2-8
Spindle bore: 3.54″

Turret 1 positions: 12
Turret 2 positions: 10

Chuck size: 18″

Tailstock taper: MT5
Tailstock quill diameter: 4.72″
Tailstock quill travel: 6.69″
Programmable tailstock

Machine weight: 20800 lbs
