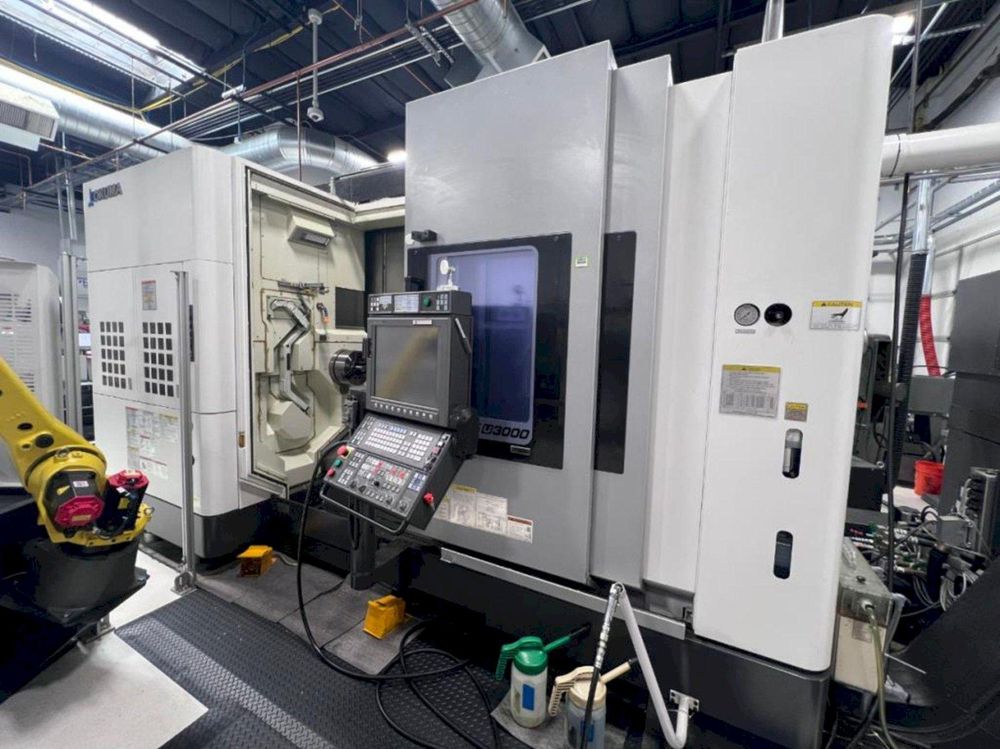

Okuma Okuma OSP-P300SA-H CNC 5,000 rpm Multus U3000 8 Axis

X Axis Travel: 25.39"
Y Axis Travel: 9.84"
Z Axis Travel: 62.99"
X2 Axis Travel (Lower Turret): 9.25"
Z2 Axis Travel (Lower Turret): 62.36"
B Axis Travel (Sub Spindle): 62.36"
C Axis Index: 0.0001°
B-axis Indexing: -30° to +120°

Control: Okuma OSP-P300SA-H CNC
Number of Axes: 8
Swing: 25.59"
Turning Diameter: 25.59"
Center Distance: 74.13"
Chuck Size: 12"
Bar Capacity: 3.15"
Spindle Speed: 5,000 rpm
Main Spindle Motor: 30/20 hp

Sub Spindle: yes
Sub Spindle Chuck: 10"
Sub Spindle Speed: 5,000 rpm
Sub Spindle Motor: 30/20 hp

Milling Spindle: CAPTO C6
Milling Spindle Speed: 12,000 rpm
Milling Spindle Motor: 25 hp
Live Tooling: yes
ATC Capacity (Milling Spindle): 40 Stations
Turret Capacity (Lower Turret): 12 Stations
Tailstock: no
Y Axis: yes
Machine Weight: 40,000 lb

Equipped with:
Chip Conveyor
Coolant Tank
MP 1200 Coolant System
High Pressure Coolant System
Lower Turret
Sub Spindle
Milling Spindle w/B Axis
Tool Presetter
Kitagawa B-212 Hydraulic Chuck Main Spindle
Kitagawa B-210 Hydraulic Chuck on Sub Spindle
Renishaw Probing (Receiver)
