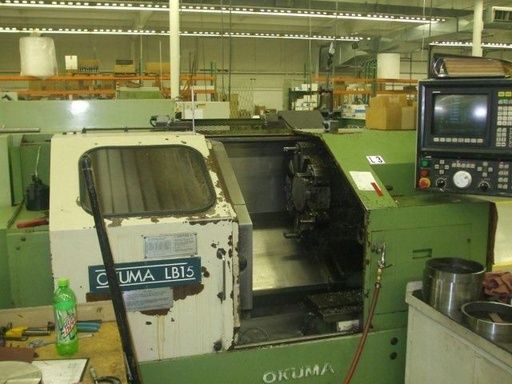

Okuma OSP 5020 WITH IGF GRAPHICS 3500 RPM LB-15 2 Axis

OKUMA LB-15
1991

OSP 5020 WITH IGF GRAPHICS
NUMBER OF CONTROLLED AXES ............. 2
SWING OVER SADDLE ..................... 15.75"
MAX. WORK LENGTH ...................... 19.69
SPINDLE BORE .......................... 3.15"
SPINDLE NOSE .......................... A2-6
RANGE OF SPINDLE SPEEDS ............... 65-3500 RPM
X-AXIS TRAVEL ......................... 6.89"
Z-AXIS TRAVEL ......................... 20.47"
RAPID TRAVERSE RATE X/Z ............... 472 IPM
TURRET TYPE ........................... V12
TAILSTOCK QUILL DIA. .................. 3.54"
TAILSTOCK QUILL STROKE ................ 4.72"
TAILSTOCK TAPER ....................... MT #5
APPROX. FLOOR SPACE ................... 73" X 120"
APPROX. WEIGHT ........................ 9,900 LBS

EQUIPPED WITH
- OSP 5020L CNC CONTROL w/IGF
- 10" 3-JAW HYD. CHUCK
- 12 POSITION TURRET
- TAILSTOCK
- ALL AVAILABLE TOOLHOLDERS AND MANUALS
