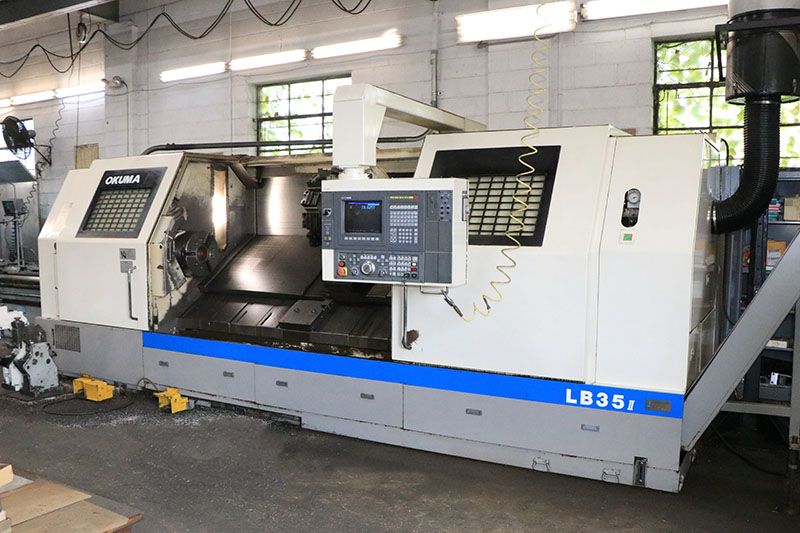

Okuma OSP 7000L Control with IGF 3,200 RPM LB-35II-2000 2 Axis

X-axis travel 12.99"
Z-axis travel 81.99"
Rapid traverse rate X/Z 590/787 IPM

Turret type V12
Tool size OD 1" x 1"
Tool size ID max 2"
Swing over bed 27.56"
Swing over cross slide 16.93"

Max. turning diameter 17.72"
Max. work length 78.74"
Max. allowable weight chucking 660 lbs
Max. allowable weight shaft work 2,200 lbs

Spindle nose A2-8
Spindle bore 3.54"
Range of spindle speeds 14 - 3,200 RPM
Number of spindle speed ranges Auto 4

Tailstock quill diameter 4.72"
Tailstock quill taper MT #5
Tailstock quill travel 6.69"
Main spindle motor 40 HP (30 min), 30 HP continuous
Approx. weight 28,400 lbs
OSP 7000L Control with IGF
15" 3-jaw hydraulic chuck
Touchsetter
Steadyrest
12-station turret
Tailstock
Chip conveyor
