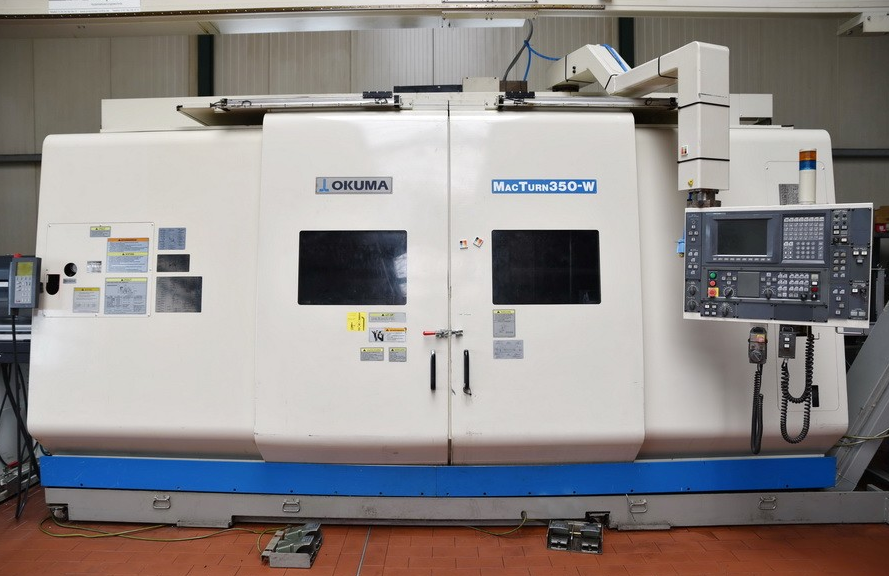

Okuma OSP E 100 L 5000 rpm MacTurn 350 W 5 Axis

Axis travel X -37 / +377 mm
Axis travel Z -85.4 / +1514 mm
Axis travel W 1537 mm
C axis 0.001°
B axis

Control OSP E 100 L
Main spindle speed max. 5000 rpm
Main spindle power 22 / 15 kW
Sub spindle speed max. 5000 rpm
Sub spindle power 15 kW
Milling spindle speed max. 6000 rpm
Milling spindle power 11 kW

Tool taper VDI 40
Number of tool positions 84
Number of driven tool positions 12
Total power requirement 56.51 kW
Machine dimensions 9.5 x 3.5 x 5.0 m
Machine weight 15 t

Automatic tool changer 84 positions
Bar feeder LNS Quick Load Servo III
Chip conveyor
Coolant system
Various tooling VDI 40
Driven tools EWS, 5x
Electronic handwheel

Guide channels Ø14, 17.5, 26, 32, 37, 42
Hydraulic system
Loading unit Pneumotec
Signal light
Spindle oil cooler
Through spindle coolant
Tool setting device
