Okuma OSP E100L CNC control 3000 RPM CAPTAIN 470M 3 Axis

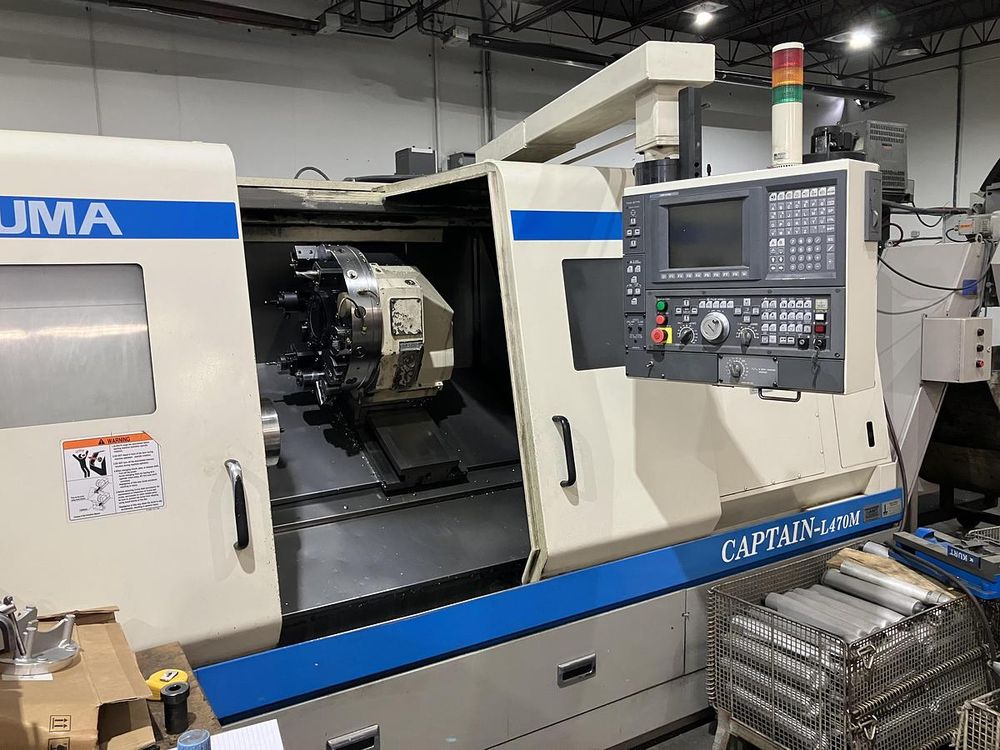

OKUMA CAPTAIN 470M
2003

Swing over bed 24.41"
Swing over saddle 16.54"
Maximum turning length 49.2"
Spindle nose A2-11
Spindle bore diameter 4.33"
Spindle speed range 15 to 3000 RPM
Z-axis travel 51.57"
X-axis travel 11.81"
Z-axis rapid traverse speed 984 IPM
X-axis rapid traverse speed 787 IPM
Tool stations vertical turret 12
C-axis resolution 0.001°
Rotary tool spindle speed 45 to 3000 RPM
Rotary tool spindle motor 7.5 HP
Main spindle motor 30 HP
Quill diameter 3.54"
Quill stroke 4.72"
Quill center taper MT #5
Approximate machine weight 14,800 lbs
OSP E100L CNC control
One Touch IGF
Tape data input/output
320M memory
Touch setter
Hi-G control
NC turret
Plane conversion
Turret position compensation
Tool life management
Profile generation
Synchronous tapping
Heavy tooling capability
Tool wear compensation
NC torque limit
Inch/metric switch
Multiple machine function
LAP-4
Nose-R 2B
User Task II
T/M axis switch
Expandable auto chamfer
MAC MAN
Programming help
Servo Link NC
Servo Link spindle
3D animation
Load monitor
Center work support
12" 3-jaw hydraulic chuck
Chuck grip confirmation
Simple tow-along tailstock
M-axis orientation
Tool presetter
Live heads
Synchronous tap on milling heads
All available manuals
All available tool holders
