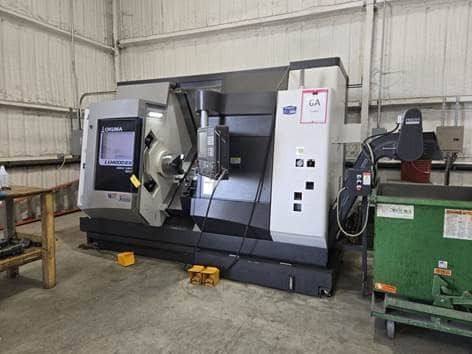

Okuma OSP-P300 4200 RPM LU4000EXMY-2SC x 650 2 Axis

Max turning diameter: Ø650 mm
Max work length: 650 mm
Control: OSP-P300
Spindle speed: 45–4200 RPM
Spindle motor: 22/15 kW (20 min/continuous)
Spindle bore: 3.5″
Upper turret capacity: 12 stations
Lower turret capacity: 10 stations
Turret index time: 0.2 sec
Tailstock taper: MT 5
Quill diameter: 3.94″
Quill travel: 5.91″
BB spindle (A2-11) with F2511 cylinder and D-tube for BR12 chuck
Y-axis off-center turning function
Helical cutting for X-, Y-, Z-axis
Live quill MT #5
Manual tool setter
Right-discharge hinge-type chip conveyor
Hydraulic oil temperature regulator
Mist collector preparation (6″)
Rapid traverse override switch
Variable spindle speed threading (left/main)
Negative tool radius compensation
Advanced One Touch onboard programming for M/Y/W
Advanced One Touch PST processor for M/Y/W
Schunk ROTA THW3 315-104 chuck
Chuck adapter
Draw nut
