1/1

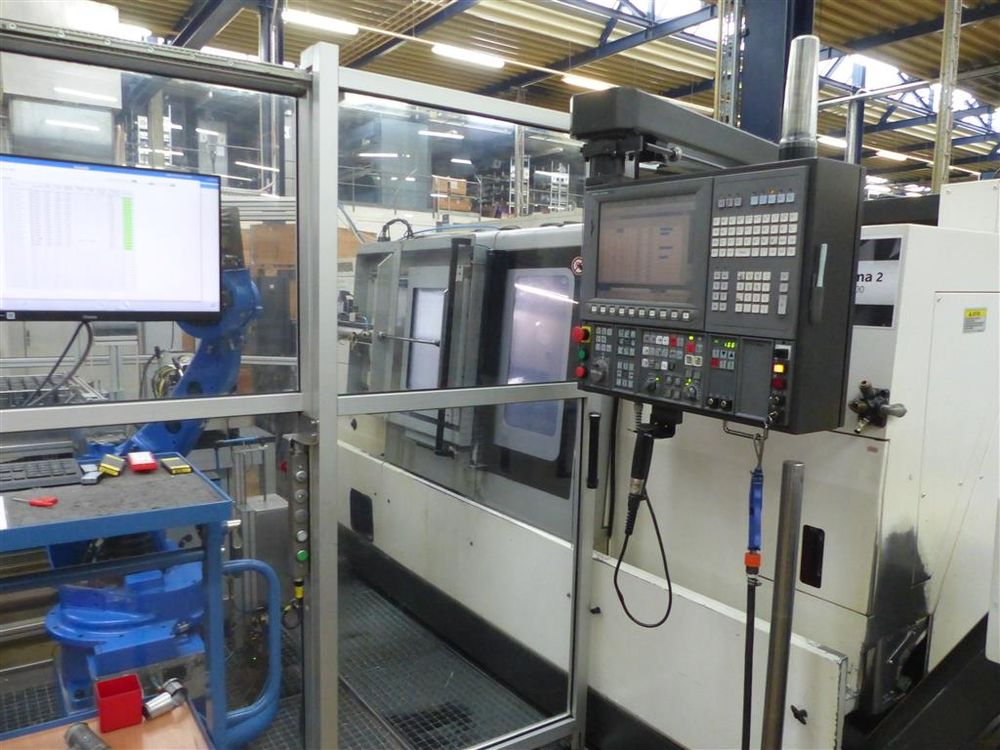

Okuma OSP P300 LA CNC system 5000 rpm LB 3000EX II-MC1000 SPACE TURN (with robot loading) 3 Axis
Ref :
2801457-3-MT
Condition :
Used
Manufacturer :
Okuma
Controller :
OSP P300 LA CNC system
Spindle Speed :
5000 rpm
Model :
LB 3000EX II-MC1000 SPACE TURN (with robot loading)
Nb Of Axis :
3 Axis
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel 260 mm
Z-axis travel 1065 mm
Rapid traverse X/Z 30 / 25 m/min
Turning diameter 340 mm
Turning length 1000 mm
Swing diameter over cross slide 470 mm
Max swing diameter over bed 580 mm
Bar capacity 52 mm
Main spindle diameter 80 mm
Spindle speed 5000 rpm
Spindle drive power 22 / 15 kW
C-axis included
Turret 12 stations
Live tool stations 12
Tool interface VDI 40
Driven tool power 7 kW
Driven tool speed 6000 rpm
Tailstock programmable
Tailstock travel 1015 mm
Tailstock quill taper MT5
Control OSP P300 LA CNC system
Robot loading system included
Chip conveyor included
Signal lamp (2 colors) included
USB 2.0 interface included
Manual tool eye included
Weight 6500 kg
Machine dimensions approx. 4 x 2.5 x 2 m
