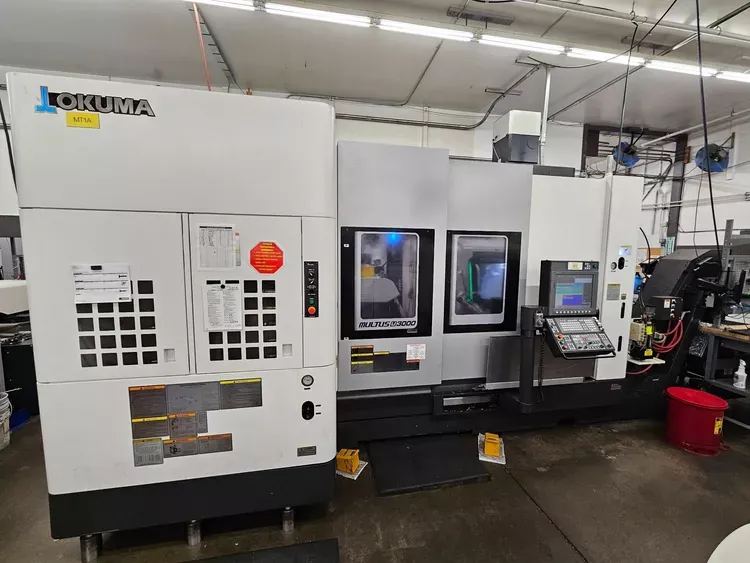

Okuma OSP-P300H CNC Color Control 5,000 RPM MULTUS U3000 2SW / 1500 8 Axis

X1 Axis Travel: 25.39"
X2 Axis Travel: 9.25"
Y1 Axis Travel: 9.84"
Z1 Axis Travel: 62.99"
Z2 Axis Travel: 57.52"

W Axis Travel Sub Spindle: 62.36"
C Axis Indexing 1: 0.0001
C Axis Indexing 2: 0.0001

B Axis Head Indexing: 0
B Axis Milling Spindle Taper: CAPTO C6
B Axis Milling Spindle Speed: 12,000 RPM
B Axis Milling Spindle Horsepower: 33 HP

ATC for Milling Spindle: 120
Spindle Bore Diameter 1: 3.58"
Bar Capacity 1: 3.15"
Spindle Speeds 1: 4,200 RPM
Spindle Horsepower 1: 30 HP
Spindle Bore Diameter 2: 2.44"
Bar Capacity 2: 2"
Spindle Speeds 2: 5,000 RPM
Spindle Horsepower 2: 30 HP

Rapid Traverse Rate X1: 1,970 IPM
Rapid Traverse Rate X2: 1,970 IPM
Rapid Traverse Rate Z1: 1,970 IPM
Rapid Traverse Rate Z2: 1,970 IPM
Rapid Traverse Rate Y1: 1,576 IPM

Turret Tool Positions 1: 12 station
Chuck Size 1: 10"
Chuck Size 2: 8"
Spindle Nose 1: A2-8
Spindle Nose 2: A2-6
Distance Between Spindles: 59.06"
Swing Over Bed: 25.59"
Turning Diameter: 25.59"
Turning Length: 59.06"
Tool Diameter: 354.51"
Tool Length: 15.75"
Tool Weight: 22 lb
Machine Weight: 38,500 lb
Control: OSP-P300H CNC Color Control

OKUMA OSP-P300 SH 1 Micron CNC Control
AOT IGF P4-ATC
Off Center Turning Function
C-Axis Synchronize Function
Negative Tool Radius Compensation
Spare M-Codes 8 Sets
A2-8 Bore (Big Bore Option)
ATC 120 CAPTO C6 Auto Tool Change Capacity
Touchsetter A for 2S
Chip Conveyor Hinge/Filter 1500BCD
Losma Mist Coolant System
Parts Catcher Inside Bucket 220mm Outside Parts Chute and Conveyor
12 Position Lower Turret
Dual Transformer 220 / 480 V
Renishaw Part Probe
Auto In Process Gauging Renishaw RMP 60 C6 CAPTO Probe
Thru Spindle Coolant B Type Sub
Dual Auto Door
Y Axis Gauging
C-Axis Auto Zero Offset Function
5 Axis Machining Kit
C Axis Synchronized Function
Turret Air Blow
TMAC 8 Adaptive Continuous Monitor Function
Sub Spindle Tailstock Function
Hi/Low Clamping Pressure Main/Sub
Whisker Tool Breakage Detection
Gosinger Laser Proxi Switch System for Manual Clamping on Main & Sub
Coolant Temperature Regulator
MP 1000 PSI High Pressure Coolant System
Spindle Chiller
NC B Axis Contouring
Robot Interface
