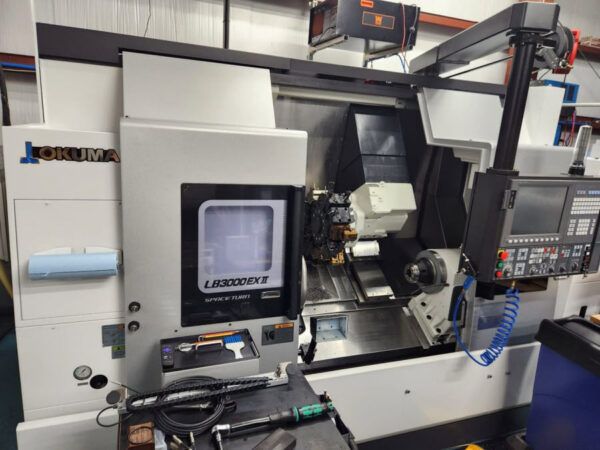

Okuma OSP-P300L 5,000 RPM LB-3000EXII-MYW 4 Axis

Swing over bed: 22.83 in
Swing over saddle: 18.5 in
Turning diameter: 13.39 in
Distance between spindles: 42.72 in
X axis travel: 10.24 in
Z axis travel: 39.76 in
Y axis travel: +4.53 / -1.77 in
C axis indexing: 0.001° / 0.001°
Rapid traverse X/Z/Y: 984 / 1,181 / 492 IPM
Spindle nose 1/2: A2-8, JIS Flat Ø140
Spindle speed 1/2: 6,000 / 5,000 RPM
Spindle power 1/2: 30 / 15 HP
Main spindle bore: 3.15 in
Sub spindle bore: Ø2.44 in
Front bearing diameter: 4.72 in
Spindle ID taper: 2°
Tool pre-setter: Yes
Chuck 1: KITAGAWA B210, 10 in 3-jaw
Chuck 2: KITAGAWA B206, 6 in 3-jaw
Bar capacity 1/2: 3 / 1.7 in
Control: OSP-P300L
Big bore spindle, A2-8 w/SR1781 cylinder + drawtube
Main spindle 40 HP, 4,200 max RPM
Sub spindle 30 HP, 6,000 max RPM
LNS low profile chip conveyor
Parts catcher
Rapid traverse override switch
Velocity static tooling package
3x OD-1-S – 1 in main/sub
1x OD-II-S – 1 in main/sub
2x ID boring bar – 1.5 in IC
1x ID boring bar – 1.5 & 1 in
Machine dimensions: 134.64 x 80.35 x 88.6 in
Weight: 15,101 lbs
