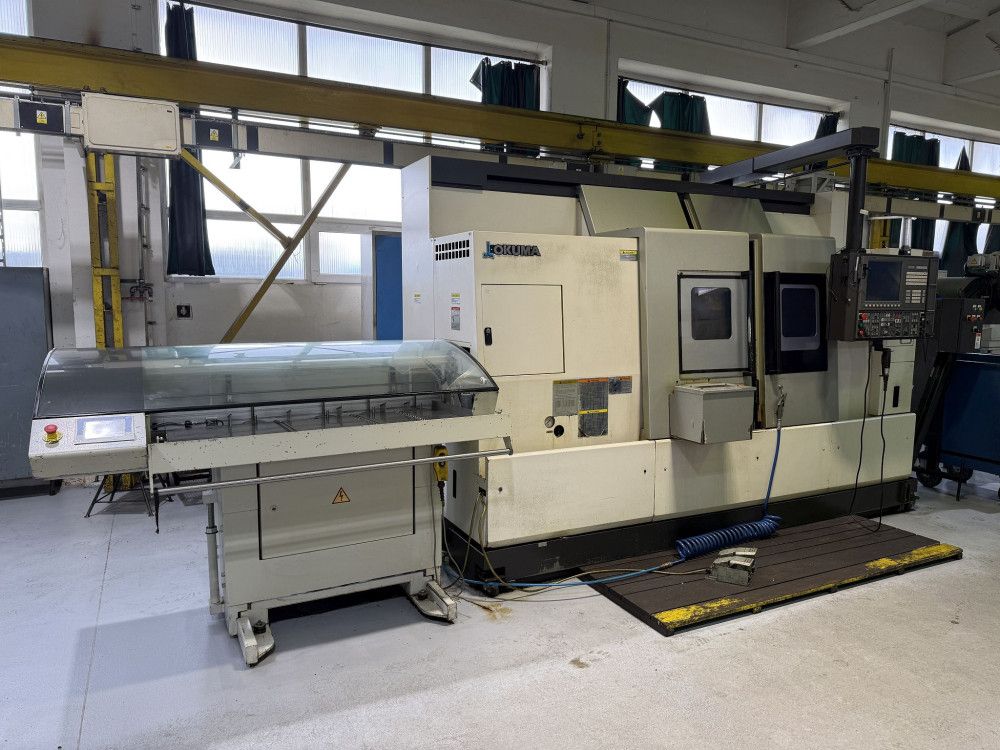

Okuma OSP-P300L CNC 5000 rpm LB3000 EXII 5 Axis

X-axis travel: 260 mm
Y-axis travel: 115 mm
Z-axis travel: 510 mm
W-axis travel: 595 mm
C-axis main spindle: 360° (0.001° increments)
C-axis sub spindle: 360° (0.001° increments)
Control: OSP-P300L CNC
15" color touch screen
High-pressure coolant: 20 bar
Coolant flow rate: 50 l/min
Load monitoring system
NC operation monitoring
3D machining simulation
Spindle speed control function
Cycle time reduction function
Hi-Cut Pro function
Bar capacity: 6–70 mm
Maximum turning diameter: 480 mm
Maximum machining diameter: 340 mm
Maximum turning length: 785 mm
Main spindle speed: 45–5000 rpm
Main spindle motor power: 22/15 kW
Main spindle bore: 80 mm
Spindle nose: JIS A2-6
Sub spindle speed: 50–6000 rpm
Sub spindle motor power: 11/7.5 kW
Sub spindle bore: 62 mm
Driven tool power: 7.1/4.1 kW
Driven tool speed: 45–6000 rpm
Rapid traverse X-axis: 25 m/min
Rapid traverse Z-axis: 30 m/min
Rapid traverse C-axis: 200 rpm
Tool positions: 12
Tool system: BMT60
Tool shank size: 25 x 25 mm
Boring bar diameter: 40 mm
Chuck size main spindle: 10 inch
Chuck size sub spindle: 6 inch
Hydraulic chuck main spindle
Hydraulic chuck sub spindle
Hydraulic through-spindle cylinder main spindle
Hydraulic through-spindle cylinder sub spindle
Tailstock clamping in sub spindle
Spring-loaded part ejector
W-axis overload monitoring
Machine width: 3330 mm
Machine depth: 1800 mm
Machine height: 2250 mm
Machine weight: 5250 kg
Power consumption: 33.1 kVA
Bar feeder: ILS MUK 7012
Chip conveyor
Mist extractor: FILTERMIST FX4002
