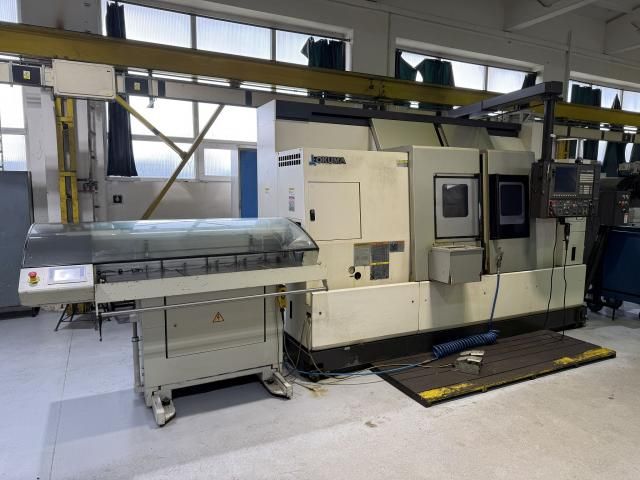

Okuma OSP-P300L CNC with touchscreen 5,000 RPM LB3000EXII MYW800 5 Axis

X-axis travel: 260 mm
Z-axis travel: 510 mm
Y-axis travel: +70 / -45 mm
W-axis travel: 595 mm
C-axis: 360° (main spindle)
C-axis: 360° (sub spindle)
C-axis indexing increment: 0.001°

Control: OSP-P300L CNC with touchscreen
Advanced One Touch IGF
3D machining simulation
Cycle time optimization functions
Load monitoring (spindle and axes)
NC operation monitoring
Spindle speed control function
Hi-Cut Pro
High-pressure coolant system (20 bar / 50 l/min)
Bar feeder ILS MUK 7012
Mist extractor FX4002
Parts ejector
Overload monitoring W-axis

Bar capacity: 6–70 mm
Swing: 480 mm
Turning diameter: 340 mm
Turning length: 785 mm

Main spindle speed: 45–5,000 RPM
Main spindle motor: 22 / 15 kW
Main spindle nose: JIS A2-6
Main spindle bore: 80 mm

Sub spindle speed: 50–6,000 RPM
Sub spindle motor: 11 / 7.5 kW
Sub spindle bore: 62 mm

Milling motor power: 7.1 / 4.1 kW
Milling speed: 45–6,000 RPM

Rapid traverse X/Z: 25 / 30 m/min
Rapid traverse C-axis: 200 RPM

Chuck size: 10″ hydraulic
Chuck size (sub spindle): 6″ hydraulic
Turret capacity: 12
Tool system: BMT60
Tool size (external): 25 × 25 mm
Tool size (internal): 40 mm

Electrical power: 33.1 kVA
Machine dimensions: 3330 × 1800 × 2250 mm
Machine weight: 5,250 kg
