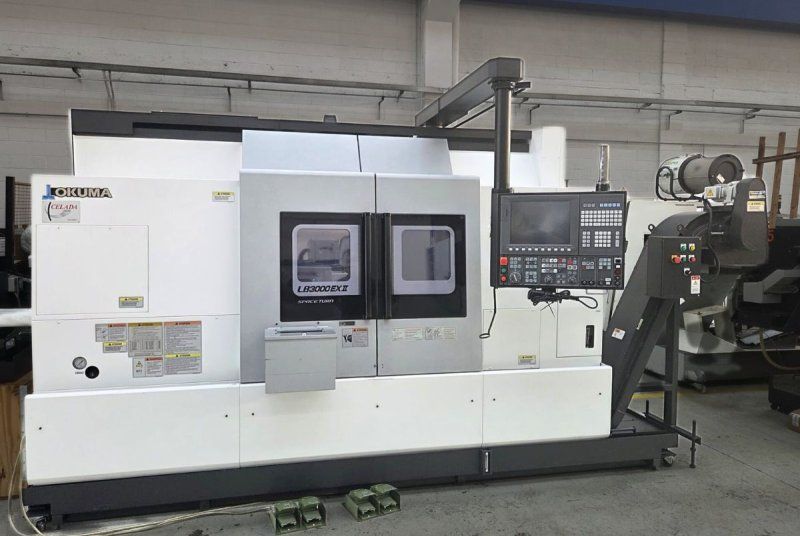

Okuma OSP P300LA 4200 rpm LB3000EX II MYC 3 Axis

X-Axis Travel: 260 mm
Y-Axis Travel: -50 + 70 mm
Z-Axis Travel: 1010 mm
Control Unit: OSP P300LA
Tool Life Management
High Pressure Coolant: 20 Bar
Tool Setter
Bar Capacity: 80 mm
Max Rotating Diameter: 580 mm
Max Turning Diameter: 340 mm
Distance Between Centres: 970 mm
Max Turning Length: 950 mm
Spindle Speed: 4200 rpm
Spindle Motor Power: 30 kW
Spindle Nose: ASA 8"
Chuck Size: 250 mm
Driven Turret Head
Turret Positions: 12
Driven Tool Speed: 6000 rpm
Driven Tool Motor Power: 7.1 kW
Rapid Feed X: 25 m/min
Rapid Feed Y: 12.5 m/min
Rapid Feed Z: 30 m/min
Weight: 6600 kg
Overall Dimensions: 3845 x 2050 x 2460 mm
Parts Catcher
CNC Tailstock
Swarf Conveyor
Bar Feeder Preset
