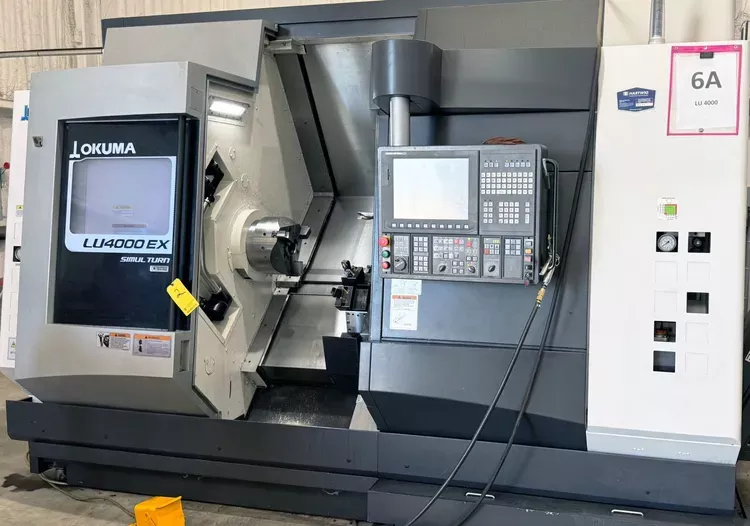

Okuma OSP P300LA CNC Color Control 3,000 RPM SIMULTURN LU4000EX 7 Axis

X1 Axis Travel: 11.8"
X2 Axis Travel: 7.68"
Y Axis Travel: 4.7"
Z1 Axis Travel: 29.13"
Z2 Axis Travel: 27.56"
C Axis Indexing 1: 0.001°
W Axis Travel Sub Spindle: 0

Turret Tool Positions 1: 12 station
Turret Tool Positions 2: 10 station
Rapid Traverse Rate X1: 984 IPM
Rapid Traverse Rate X2: 984 IPM
Rapid Traverse Rate Z1: 1,181 IPM
Rapid Traverse Rate Z2: 1,181 IPM
Rapid Traverse Rate Y: 492 IPM
Spindle Bore Diameter 1: 4.41"

Bar Capacity 1: 4"
Spindle Speeds 1: 3,000 RPM
Spindle Horsepower 1: 43 HP
Spindle Nose 1: A2-11
Chuck Size 1: 15"
Turning Diameter: 18.9"
Swing Over Bed: 27.36"
Turning Length: 25.59"
Distance Between Centers: 25.59"

Tailstock Quill Diameter: 4.72"
Tailstock Taper: MT #5
Tailstock Quill Travel: 5.91"
Programmable Tailstock: Yes

Bar Capacity: 4"
Control: OSP P300LA CNC Color Control
Machine Weight: 19,400 lb

Features/Equipment:
0SP-P300L CNC Color Control
Program Restart / Inverse Time Feed
Manual Pulse Generator
Chip Conveyor Right Discharge
Auto Power Off
15" 3 Jaw Hydraulic Chuck with 4" Bar Capacity
Big Bore Spindle Option A2-11, 4.41" Spindle Bore 3,000 RPM
Tailstock Auto Tow Along
Touch Tool Setter Manual
Hi/Low Coolant Pressure Switchable
Chip Conveyor
