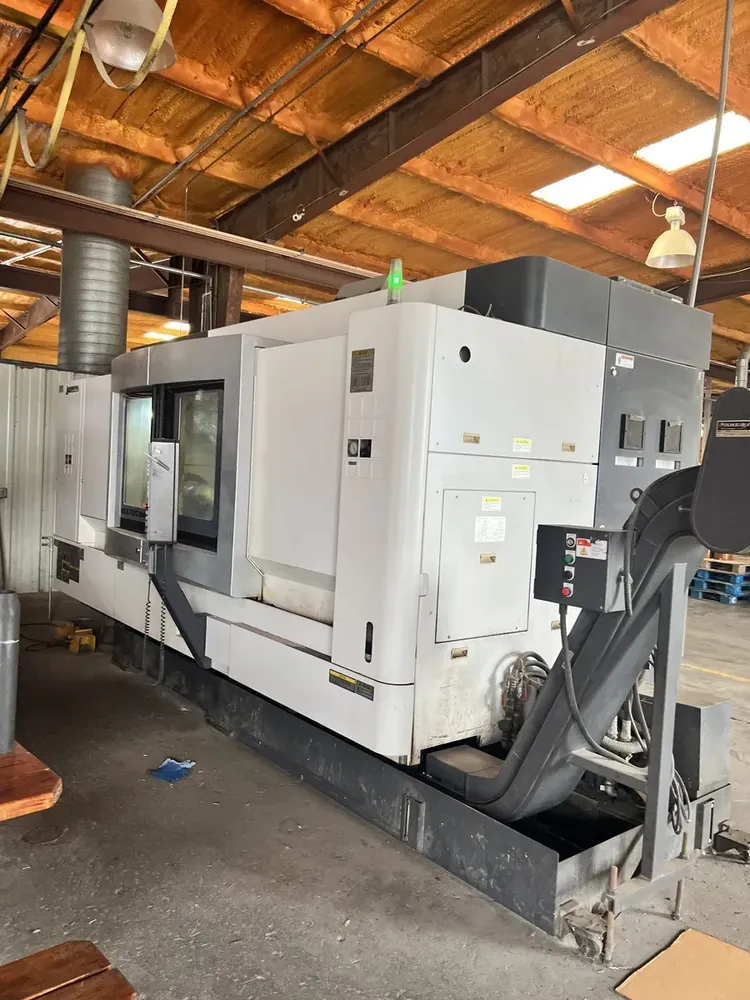

Okuma OSP-P300S CNC color control 2,800 RPM MULTUS B400-II-BBW / 1500 6 Axis

X-axis travel: 27.17"
Y-axis travel: 9.06"
Z-axis travel: 60.83"
W-axis travel: 61.02"
Rapid X-axis: 1575 IPM
Rapid Y-axis: 1024 IPM
Rapid Z-axis: 1575 IPM
B-axis travel: 225°
B-axis indexing: 0.001°
C-axis indexing
OSP-P300S CNC color control
Collision avoidance system
Custom tool life management
Tool offset: 200 sets
Hydraulic/air chuck switchable
Touch setter
Touch sensor
Y-axis gauging
Tool setters on both spindles
Coolant through milling head
Shower coolant system
Spindle chiller
Mist blaster system
Profile generation
Plane conversion
Synchronous tapping
Helical interpolation
Slant cutting
3D animation
3D virtual monitor
Program help
Main spindle bar capacity: 3.8"
Swing over bed: 27.95"
Turning diameter: 27.95"
Turning length: 59.06"
Distance between spindles: 63.2"
Main spindle speed: 2,800 RPM
Main spindle motor: 40 HP
Main spindle nose: A2-11
Main spindle bore: 4.33"
Sub spindle
Sub spindle speed: 2,800 RPM
Sub spindle motor: 40 HP
Sub spindle nose: A2-11
Sub spindle bore: 4.33"
Milling spindle speed: 6,000 RPM
Milling spindle motor: 18.7 HP
Milling spindle taper: Capto C6
12" main chuck
12" sub chuck
80-station automatic tool changer
Tool diameter: 3.54", 5.12"
Max tool length: 15.75"
Max tool weight: 22 lbs
Hinge chip conveyor
2 tooling carts
Machine weight: 33,000 lbs
