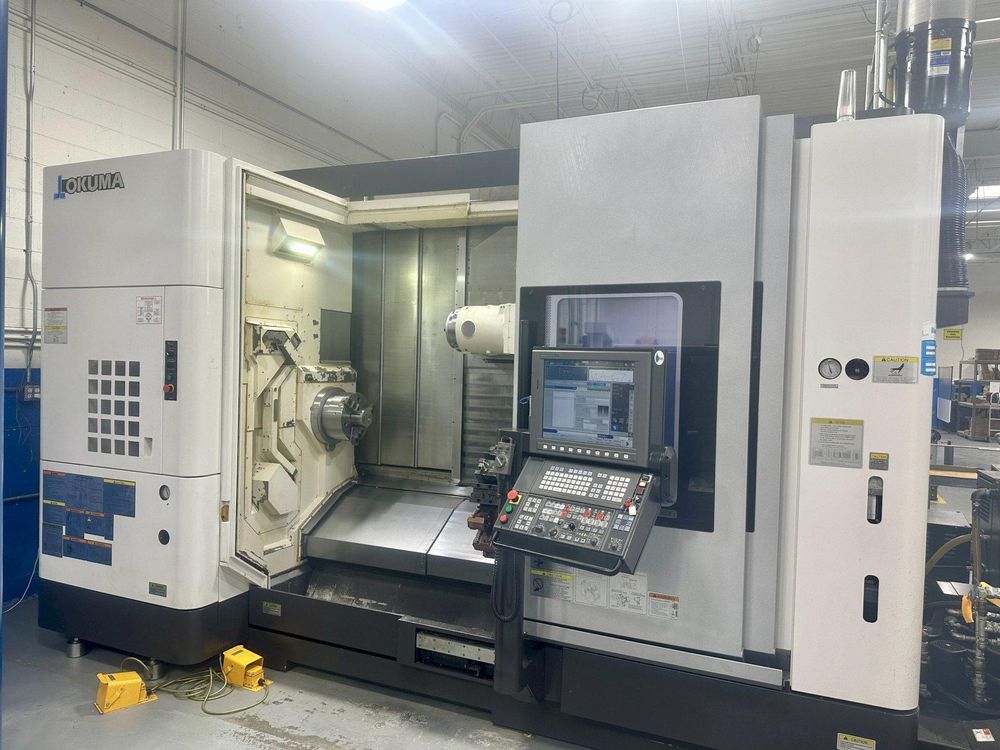

Okuma OSP-P300SA 4,200 RPM MULTUS U4000SB/SB-2SW/1500 5 Axis

OKUMA MULTUS U4000SB/SB-2SW/1500
Year: 2018

CNC control: OSP-P300SA
Number of axes: 5
Max swing over bed: 29.59"
Main spindle chuck size: 12"
Max turning diameter: 25.59"
Max part weight: 1,760 lbs
X-axis travel: 27.36"
Z-axis travel: 62.99"
Y-axis travel: ±5.91"
B-axis range: -30° to 210°
C-axis indexing: 360° (0.001°)
Main spindle thru hole: 4"
Main spindle nose: A2-11
Main spindle power: 30 HP
Max main spindle speed: 4,200 RPM
Sub-spindle chuck size: 10"
Sub-spindle nose: A2-8
Sub-spindle power: 30 HP
Max sub-spindle speed: 3,800 RPM
X-axis feed rate: 27.36 IPM
X-axis rapid traverse: 1968 IPM
Z-axis feed rate: 1968 IPM
Z-axis rapid traverse: 82.68 IPM
X2-axis rapid traverse (lower turret): 980 IPM
Z2-axis feed rate (lower turret): 1968 IPM
Z2-axis rapid traverse (lower turret): 1574 IPM
Max swing between centers: 93"
ATC capacity: 40
ATC tool shank: CAPTO C6
Lower turret positions: 12
Machine cutting hours: 464
Electrical: 220/480V, 3-phase, 60 Hz
Machine dimensions: 180" x 130"
Machine height: 125"
Machine weight: 39,600 lbs

OSP-P300SA CNC control
12" 3-jaw chuck on main spindle
10" 3-jaw chuck on sub-spindle
Universal B-axis milling head
Capto C6 12,000 RPM milling spindle
40-station automatic tool changer
12-position lower turret with live tooling
Automatic tool eye
Full C, B, and Y-axis capability
Renishaw probing
Chip conveyor
Coolant tank
MP Systems VR8-1000 PSI coolant system
Thru-spindle coolant
Spindle chiller
Transformer
New main spindle (zero cutting time)
