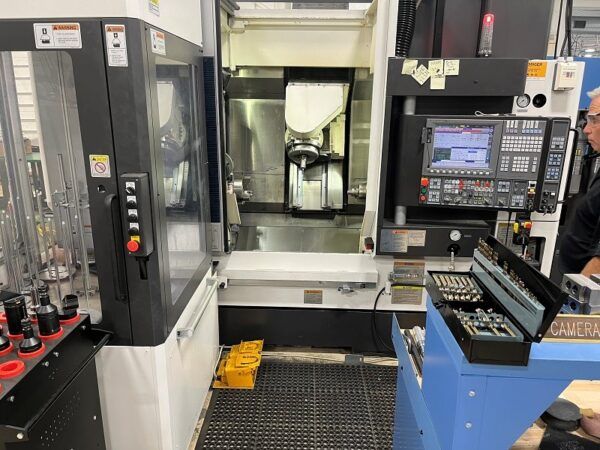

Okuma OSP-P300SA-H CNC Control included 5000 rpm MULTUS B250II-1SW/750 ARMROID 5 Axis

X-axis travel: 19.69 in
Y-axis travel: 7.87 in
Z-axis travel: 31.5 in
W-axis travel (sub spindle): 31.89 in
C-axis index: 0.001 degrees
OSP-P300SA-H CNC Control included
High pressure thru spindle coolant included
8 in chuck size
6 in sub spindle chuck size
Bar capacity: 2.6 in
Swing diameter: 23.62 in
Spindle speed range: 5000 rpm
Spindle nose: A2-6
Spindle bore: 3.15 in
Spindle motor: 30 / 20 HP
Sub spindle motor: 15 / 10 HP
Sub spindle speed: 6000 rpm
H1 spindle speed: 50 – 12000 rpm
H1 swivel range: 225 degrees
Rapid traverse rate (X & Z / Y / W): 1575 / 1023 / 787 ipm
Tool magazine capacity: 60 tools
Maximum tool diameter: 3.54 in / 5.12 in
Maximum tool length: 7.87 in
Maximum tool weight: 8.8 lb
Maximum turning diameter: 23.62 in
Distance between spindles: 40.55 in
Machine mass: 1290 kg
Armroid robotic handling system included
Chip conveyor included
Dual spindle C-axis high precision control included
5-axis machining kit included
Auto gauging system with Renishaw RMP600 RMI-Q included
