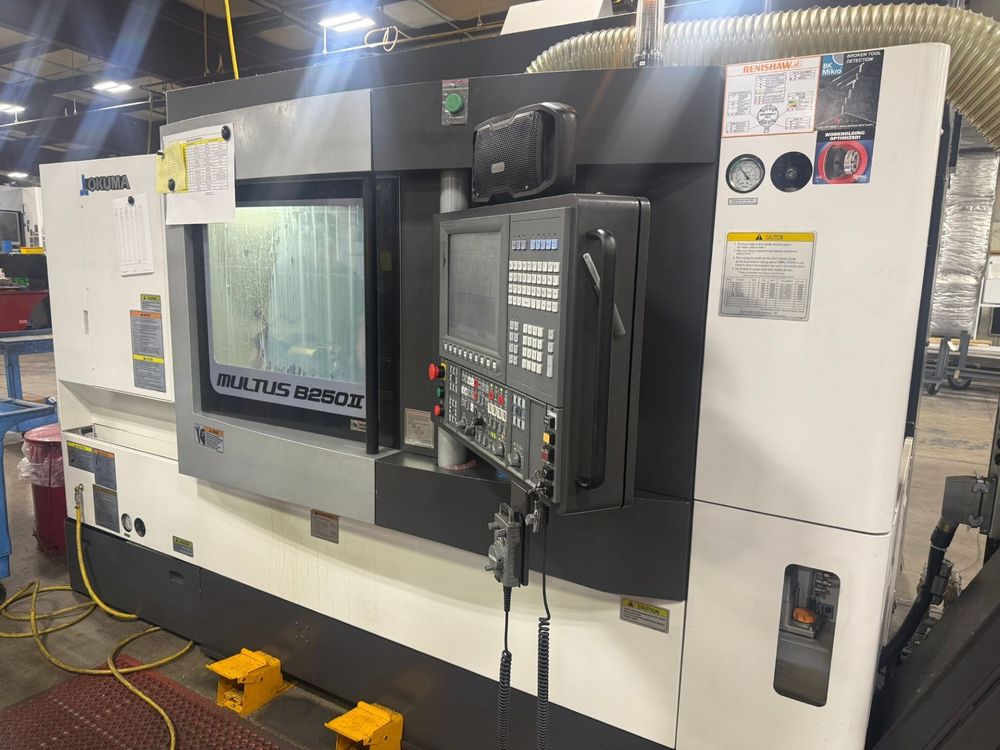

Okuma OSP-P300SA(LP) CNC Control 5,000 RPM MULTUS B250II-1SW/750 5 Axis

X-Axis Travel 22.83"
Y-Axis Travel ±3.15"
Z-Axis Travel 35.51"
W-Axis Travel 39.37"
B-Axis Travel -30° to +195°
B-Axis Indexing 0.001°
Tool Presetter
Parts Catcher
Chip Conveyor Hinge Type
High Pressure Coolant System 1200 PSI
Coolant Through Spindle
Mist Collector
Main Spindle Bar Capacity 3.15"
Swing Over Saddle 24.8"
Distance Between Centers 35.43"
Main Spindle Speed 5,000 RPM
Main Spindle Power 30 HP
Spindle Nose A2-6
Main Spindle Bore 3.93"
Sub Spindle Speed 6,000 RPM
Sub Spindle Power 15 HP
Sub Spindle Bore 3.94"
Sub Spindle Bar Capacity 3.15"
Milling Spindle Speed 12,000 RPM
Milling Spindle Taper Capto C6
Main Spindle Chuck Size 10"
Sub Spindle Chuck Size 8"
ATC Capacity 120
Machine Dimensions 142.52" x 87.01" x 101.66"
Machine Weight 17,820 LBS
