Okuma OSP U100L CNC control 3500 RPM LB400M 3 Axis

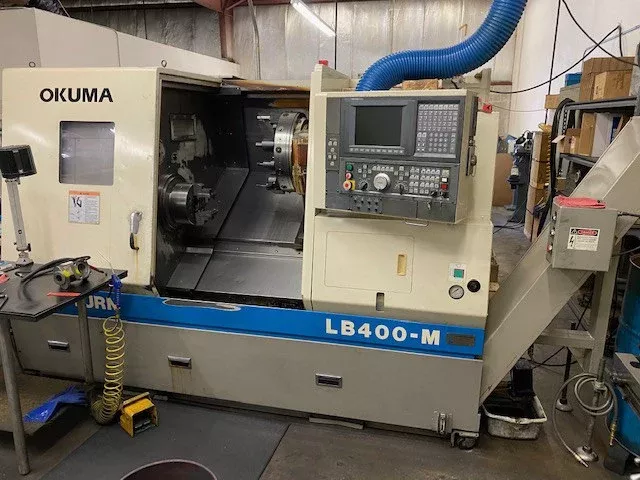

OKUMA LB400M
Year: 1999

Swing over bed: 24.40"
Turning diameter: 16.54"
Machining length: 25.59"
Distance between centers: 26.57"
Chuck size: 10"
Spindle nose: A2-8
Spindle bore diameter: 3.15"
Bar capacity: 2.55"
Spindle speeds: 3500 RPM
Spindle motor power: 30 HP
Gear ranges: 2
X-axis travel: 11.81"
Z-axis travel: 26.57"
C-axis indexing: 0.001°
Rapid traverse X-axis: 790 IPM
Rapid traverse Z-axis: 985 IPM
Rapid traverse C-axis: 200 MIN
Turret positions: 12
Milling spindle speed: 3000 RPM
Rotary tool horsepower: 7.5 HP
Tailstock quill diameter: 3.94"
Tailstock quill travel: 5.91"
Machine weight: 12,100 lbs

Pitch error compensation
LAP 4 / Nose-R 2B / User task 2 / 3D animation
Spindle orientation electric
NC turret
Servo link S
Tape data in/out
Plane conversion / Profile general
N/C torque limit
Thread override
Animation
Inch/Metric
Thermal compensation
M-axis orient / Spindle max. IL
Chuck grasp confirmation
Hydraulic oil cooler
External brake release
Safety relay
Chip conveyor
OSP U100L CNC control
Sync tapping on mill head
Dual transformer
10" 2-jaw hydraulic chuck
10" 3-jaw hydraulic chuck
2 axial milling holders
2 radial milling holders
