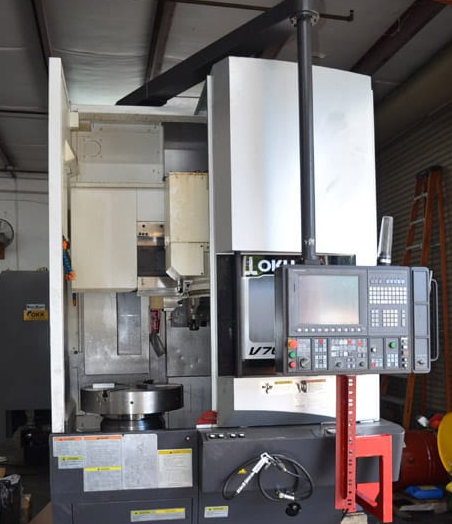

Okuma V760EX-M Swing on Carriage 24.02″

X-Axis Travel 15.35″
Z-Axis Travel 30.31″
C-Axis Travel 360° (minimum control angle 0.001°)
CNC Control OSP-P300LA
Max Turning Diameter 29.92″
Max Swing Diameter 31.5″
Swing on Carriage 24.02″
Max Work Length (Height) 30.31″
Max Workpiece Weight with Chuck 1,100 lbs
Height from Floor to Spindle Nose 42.72″
Spindle Speed 20 – 2,000 RPM
Spindle Nose JIS A2-11
Spindle Drive 40/30 HP (30 min/cont)
Milling Tool Spindle Speed 4,000 RPM
Milling Tool Spindle Motor 10/5.7 HP (25 min/cont)
Number of Turret Tools L/M: 12
Kitagawa 24″ Closed Center Chuck with AS-11 Adapter
High Torque Geared Spindle
Milling Function
Touchsetter QTS (Manual/Auto)
Chip Conveyor, Rear Discharge, Hinge, High
Splash Gun, Coolant
Shower Coolant, Type B from Ceiling
Prep Only for Mist Collector, 6″
Spare M-Codes, 8 Sets
Air Blow, Chuck
Machine AOT IFG P2 M/W Lathe
Common Variables, 1,000 Sets
Helical Cutting for X,C,Z
Negative Tool Radius Compensation
Rapid Traverse Override Switch
