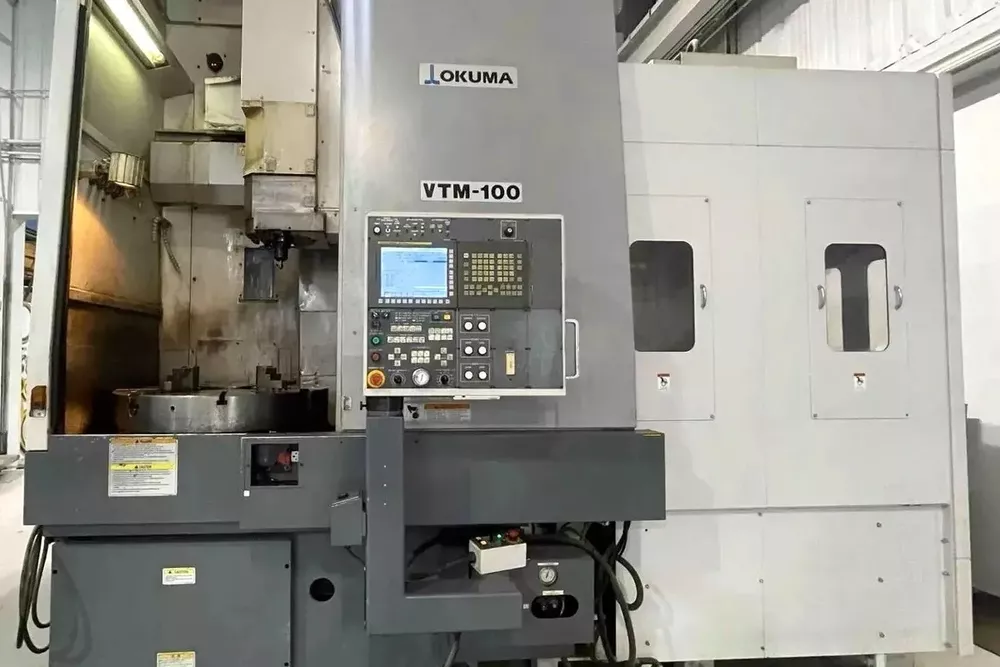

Okuma VTM-100 Max Swing Diameter: 39.37"

X Axis Travel: 25.59"
Z Axis Travel: 30.07"
C Axis: 360° (0.001°)
Control: Fanuc 31i-MA CNC
PCMCIA Card Slot
RS232 Port
Max Machining Diameter: 39.37"
Max Machining Height: 33.07"
Max Workpiece Load: 2,640 lbs
Swing: 39.37"
Machining Length: 33.07"
Spindle Speed: 10 – 1,250 RPM
Spindle Motor: 40 HP
Spindle Nose: A2-11
Spindle Bore: 4.33"
Tailstock: No
Live Tooling: Yes
Main C-Axis Turret Type: ATC Single Tool
Tool Size: 1.0", 1.25"
Boring Bar Diameter: 1.5", 2.0"
Milling Tool Spindle Max Speed: 10 – 4,500 RPM
Milling Taper: 50
Rapid Traverse X Axis: 630 IPM
Rapid Traverse Z Axis: 630 IPM
Automatic Tool Changer Capacity: 60 Tools
Max Tool Diameter: 6.70" – 9.84"
Max Tool Length: 19.69"
Max Tool Weight: 66 Lbs
Chuck Size: 39.37" 4-Jaw
Cat 50 Taper Milling Spindle
Probing System (Tool Probe Included)
High Pressure Through Spindle Coolant
Rear Discharge High Top Chip Conveyor
Front Operator Foot Switches
Overall Dimensions: 169" x 126" x 169"
Weight: 29,700 lbs
