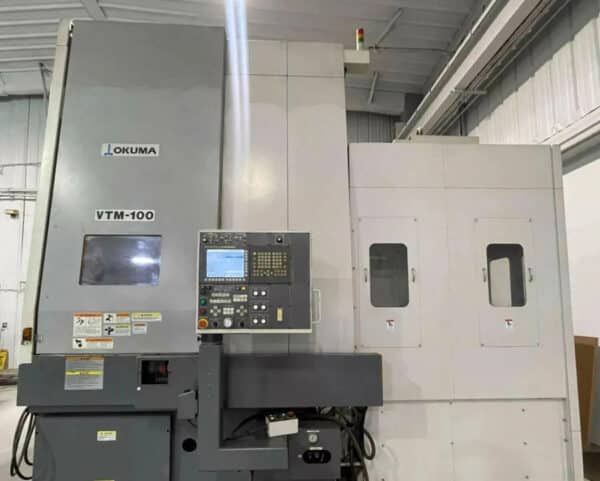

Okuma VTM-100 VBM Max swing diameter: 39.37″

X-axis travel: 25.59″
Z-axis travel: 30.07″
C-axis rotation: 360° (0.001° indexing)
Rapid traverse X-axis: 630 IPM
Rapid traverse Z-axis: 630 IPM

Control: Fanuc 31i-MA CNC
Tool probe included
Through-spindle coolant system
Coolant system included
Chip conveyor included
RS232 port
PCMCIA card slot

Max machining diameter: 39.37″
Max machining height: 33.07″
Max workpiece load: 2,640 lb

Spindle speed: 10–1,250 RPM
Spindle motor: 40 HP
Spindle nose: A2-11
Spindle bore: 4.33″

Milling spindle speed: 10–4,500 RPM
Milling spindle taper: 50 taper
Milling spindle speed ranges: 2 auto ranges

ATC capacity: 60 tools
Max tool diameter: 6.70″–9.84″
Max tool length: 19.69″
Max tool weight: 66 lb

Turret type: ATC single tool
Tool size: 1.0″, 1.25″
Boring bar capacity: Ø1.5″, Ø2.0″

Chuck size: 39.37″ 4-jaw chuck

Machine dimensions: 169″ x 126″ x 169″
Machine weight: 29,700 lb
