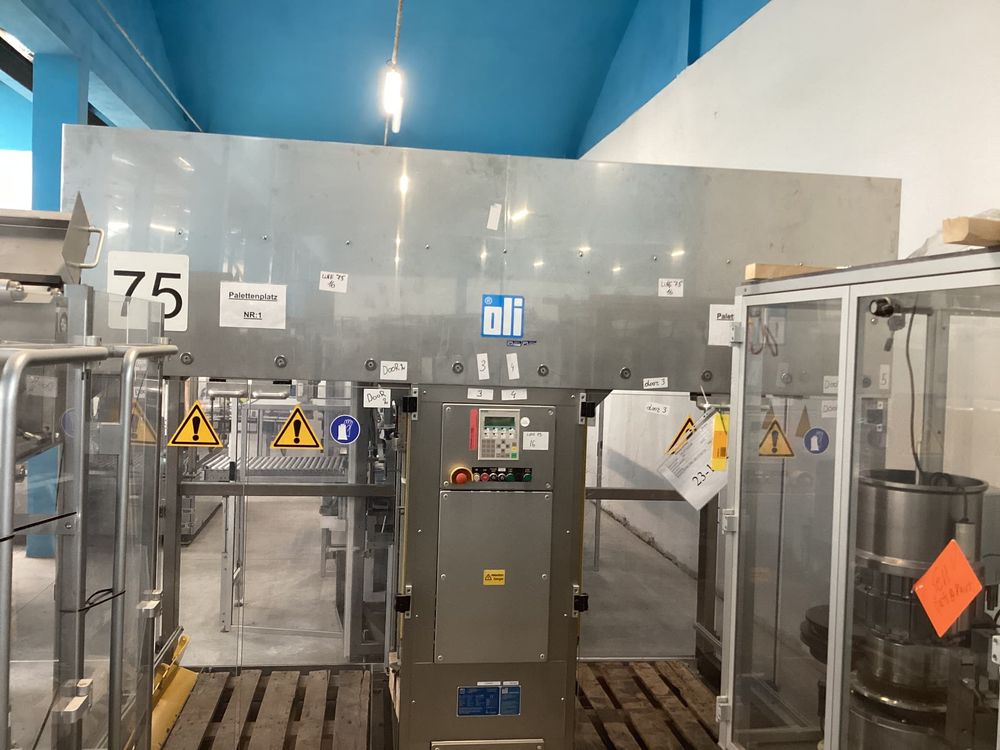

Oli Specialanlage 210

Output1200 Units/h.

Extra information
Fully automatic final case packer OLI 210 del 2002(up to 20 cs/min) - Side Loading
• Product is supplied and sorted fully automatically
• Meets highest requirements: wrap-around cases, American cases, and trays with/without lids
• Integrated case/tray erector and sealer
• Modular design extendable with the oli-pal to operate as a fully automatic final packaging line
• Processing is gentle on products offering highest process safetyThis installation consists of the following modules:
» Product infeed and grouping module oli 210» olimat 1 case erector/sealer
The oli-pal or the oli-pal Duplex compact palletiser extend the installation to operate as a fully automatic final packaging line.

General information:
Can be applied in all industries.Pharmaceutical compliant, balcony-style design.
Compact and space-efficient. Superior workmanship/material quality and refined operationability in all details:
» Virtually all adjustments suspended on top» Extremely high performance rang
» Highest degree of flexibility for processing cases» Positive case opening via suckers» Width of oli 210 reduced by 40%
» Operator panel with multi-lingual textdisplay or touchscreen panel» Extensive format range, format changed quickly
» Servo motors drive all relevant motionTechnical information:Output: up to 20 American cases or trays/min,
up to 40/min with extra equipment Case/Tray format range (L x W x H mm): 100-500 x 60-340 x 100-400 or according to customer preference
Operating voltage/required power: 3 x 230/400 V/N/PE, 50/60 Hz, 6 kVAAir pressure: 3 - 6 bar
Floor layouts: Left or right-hand variants to customer preference
Change over time: approx. 5 - 20 minNote:oli packaging machinery is customized in terms of output, colour, installed load, etc.,
to suit the specific customer application.All machinery can be designed inversely for every format.
