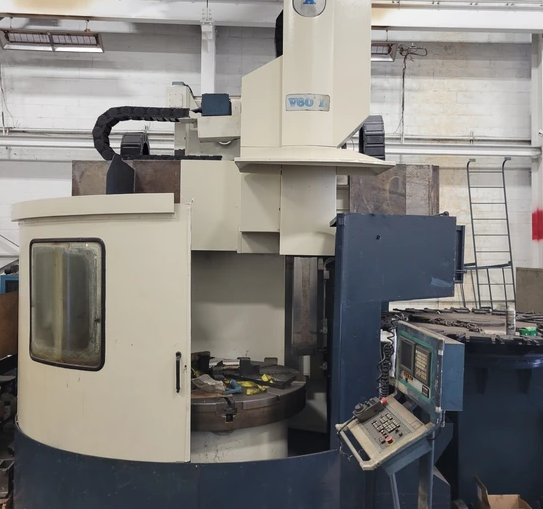

Olympia V60L Swing 70.86"

OLYMPIA V60L
Year: 1999

Table Dia 59.05"
Swing 70.86"
Work Ht-U/R 62"
Power 29 hp
RPM 450 RPM
Control CNC (Fanuc 180i-T)
Dimensions 222" x 196" x 140" high
Weight 58,000 lbs

Table diameter 66"
Maximum Swing 70"
Standard Turning Diameter 68"
Chuck Diameter 66"
Maximum under rail 70"
Table drive power 5
"X" axis travel 60
No. Of Tools 32
Control mfg. Fanuc
Control model 180i-T
Max. Table speed 350 RPM
Weight 58,000 lbs.
Live milling RPM 2,500
Live spindle taper Cat 50
Cross rail travel 40"
Vertical Ram Travel 40"

Machine, column and rail 180" x 114" x 140 high, 42,000
Elevating mechanism and ATC 105" x 101" x 108" High, 6,000
Control panel, transformer & tooling 6,000 #
Main drive motor 41"x 18"x 28" 1,100#
Hydraulic unit 40"x 40"x 40" 600#
Chip conveyor w/ coolant tank 149"x 52"x 80" 1,560#
leveling pads pallet 24"x 24"x 12" 800#
electrical cabinet 71"x 21"x 79"H 1,200#
Table drive power 50 HP
Table 100 RPM and axis moving
Tool change sequence 7-26-2022
