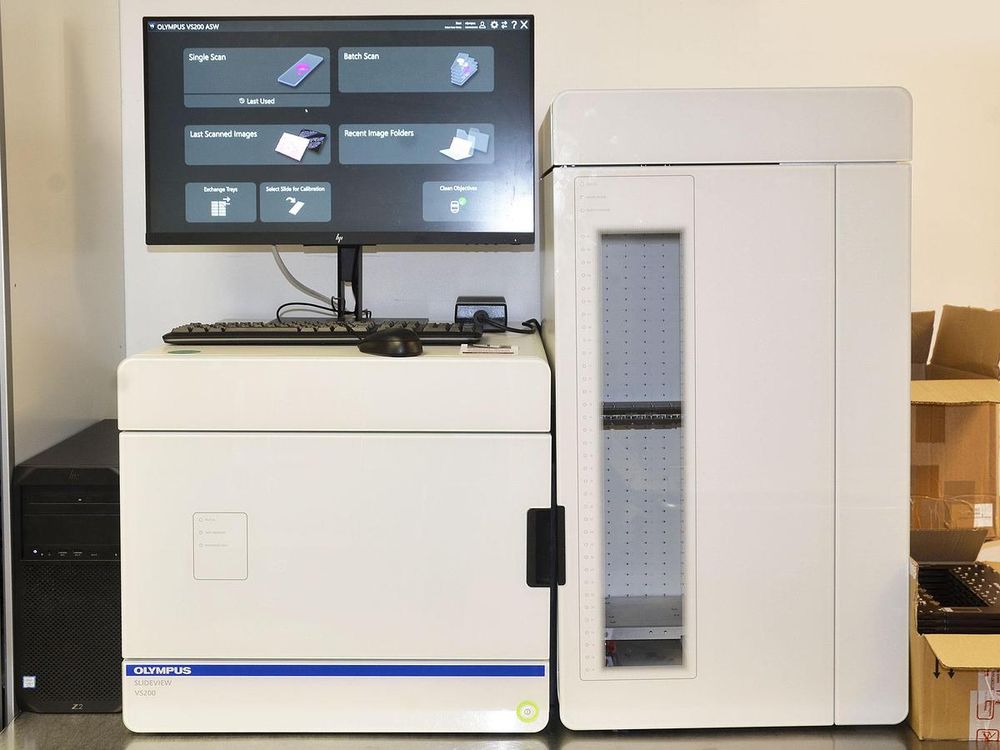

Olympus Evident VS200-BU

The VS200-BU Slide Scanner enables applications ranging from
advanced research to specialized digital pathology.
The SLIDEVIEW™ VS200 System is designed to capture a
wide variety of specimens and stains with multiple magnifications,
flexible slide sizes, and five versatile imaging modes.
Exceptional whole-slide image quality allows your lab to
fully realize the potential of your samples.

Flexible imaging modes
Discover more details in your samples with five imaging modes: brightfield,
polarization, fluorescence, darkfield and phase contrast in one system,
and the ability to combine multiple techniques in a single scan.

Support for glass slides and plates
Mixed Batch Scanning: An easy-to-use slide tray lets you scan 26 × 76 mm
(1 × 3 in), 52 × 76 mm (2 × 3 in), 76 × 102 mm (3 × 4 in),
and 102 × 127 mm (4 × 5 in) slides in a single batch.

Automated slide detection: An RFID system detects different formats and
scans them in the same batch, saving time and optimizing throughput.

Data management
Easily analyze, share and archive your data
Centralized Image Storage: Easily manage your images with
the optional Net Image Server (NIS) SQL database.
Secure Web Sharing: Easily store and share your images online to
collaborate with colleagues, research teams, or remote consultants.
Access Control: Control access to your data with individual access rights.
Multiple File Formats: Scan and export images in VSI, OME-TIFF,
and DICOM formats.

LIS Integration: Query the laboratory information system (LIS) for
additional metadata and save scans in DICOM format for
direct upload to an image management system.

Automated Workflows: Enable automatic uploads to the NIS SQL
database for simplified data management.

VSI Format for Advanced Microscopy: Developed by Evident,
the VSI file format addresses the specific needs of microscopic imaging.
Its growing adoption by various projects and companies ensures
long-term compatibility and support.

Observation Methods: Brightfield, Reflected Brightfield (optional*2),
Darkfield, Phase Contrast (optional*3), Single Polarization (optional*4),
Fluorescence (optional), Fluorescence Optical Sectioning with
Speckle Illumination (SILA Module optional).

Optical frame illuminator: Integrated Köhler illumination for
transmitted light; high intensity LEDs and high color rendering
(up to 50,000 hours).

Objectives: Compatible 2X, 4X*4, 10X*5, 20X, 40X*5, 60X*5 and
100X*5 objectives for 6-position motorized nosepiece
(including selected oil immersion, silicone oil immersion and
phase contrast objectives),
Automatically controlled XY motorized stage
Automatically controlled motorized focus
Built-in 2/3 inch CMOS color camera, pixel size 3.45 μm × 3.45 μm,
high sensitivity, high resolution
Scanning unit capacity
Slide Tray: Up to 35 slide trays, 210 slides maximum
Pixel resolution (color camera)
UPLXAPO20X (NA 0.8): 0.274 µm/pixel
Scanning time
Bright field: about 1.5 minutes
(20X objective, scanning area 15 mm × 15 mm)
NOVEM Widefield Fluorescence: approximately 6.5 minutes (20X objective,
15 mm × 15 mm scanning area, 4 fluorescence channels,
10 ms exposure each)

Software: Automatic sample detection (generic deep learning and TruAI),
automatic barcode reading, autofocus, autoscan, autostitch,
pause and resume scanning, Z-stack imaging, extended focus imaging (EFI),
image formats: VSI, JPEG, TIFF, DICOM, synchronized multi-image display,
continuous zoom, zoom while scanning, annotations, screen capture,
slide loader control

UPLFLN4X lens, illuminator with fly's eye lens, motorized mirror turret,
motorized filter wheel
SILA: laser combiner up to 6 lines and jammer
