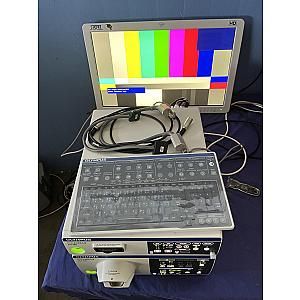

Olympus Evis Exera III CV-190

as new, with CLV-190 endoscopy video processor with
XENON cold light source, keyboard MAJ-1922,
Water bottle MAJ-901, on very good WM-DP2 trolley with
OEV262H monitor, endoscope holder, gas bottle holder,
TOP CONDITION

Accessories :
endoscopy video processor with XENON cold light source,
keyboard MAJ-1922, Pigtail MAJ-1430, Water bottle MAJ-901

Features
Advanced imaging capabilities with NBI (Narrow Band Imaging)
Dual focus imaging technology
Enhanced image processing for superior clarity
Waterproof one-touch connector for simplified setup
Compatibility with a wide range of endoscope models
Supports both standard and high-definition outputs
Ergonomic design for enhanced usability

Technical Details
Power Supply:
Voltage: 100-240 V AC (NTSC) / 220-240 V AC (PAL); within ±10%
Frequency: 50/60 Hz; within ±1 Hz
Electric power consumption: 150 VA

Size and Weight:
Dimensions (W × H × D): 370 × 85 × 455 mm; 382 × 91 × 489 mm (maximum)
Weight: 10.7 kg

Classification:
Type of protection against electric shock: Class I
Degree of protection against electric shock of applied part:
Depends on applied part
Degree of protection against explosion: The video system center
should be kept away from flammable gases

Observation:
Analogue HDTV signal output: RGB or YPbPr (1080/50I: PAL)
Analogue SDTV signal output: VBS composite, Y/C,
and RGB (576/50I: PAL); simultaneous outputs possible
Digital signal output: HD-SDI (SMTPE 292M), SD-SDI (SMPTE 259M),
DV (IEEE 1394), and DVI (WUXGA, 1080p or SXGA)

White Balance and Image Adjustments:
White balance adjustment: Available via the front panel
Standard colour chart output: Options for displaying 'colour bar' or
'50% white' screen
Color tone adjustment: Adjustments for red, blue, and chroma levels

Image Enhancement and Freeze Function:
Automatic gain control (AGC): Electronically amplifies images in
low light
Contrast adjustment: Normal, High, and Low contrast modes
Iris: Auto iris modes for brightness adjustment
Image enhancement setting: Structural and
edge enhancement options

Additional Features:
Freeze function: Captures and displays the clearest image
Fog-free function: Reduces fogging when compatible endoscope
is connected
Documentation and Patient Data: Displays patient information
and recording state
Portable memory: Supports MAJ-1925 (OLYMPUS) media for
image recording

Compatible Accessories
Endoscopes:
EVIS EXERA III series endoscopes (190 series)
EVIS EXERA II series endoscopes (180 series)
EVIS EXERA series endoscopes (160 series)
EVIS EVERA II series endoscopes
GI/BF/VISERA series endoscopes

Light Sources:
Compatible light sources for endoscopic procedures

Video Scopes:
Various video scopes compatible with the CV-190 system

Image Capture and Documentation:
EndoImage2 image capture software
Portable memory devices (MAJ-1925, OLYMPUS)

Cables and Connectors:
DVI cables (e.g., OS‑A78 DVI cable)
BNC video cables (e.g., OS‑A17 BNC video cable)
White balance adjusters (e.g., OS‑A43H white balance adjuster)
Condenser earth cables (e.g., OL‑Z3 condenser earth cable)

Networking and Connectivity:
RS-232C connectors
RJ45 connectors for network connectivity

Display and Output:
HDTV monitors (16:9 and 16:10 aspect ratios)
Analogue outputs (RGB, YPbPr)
Digital outputs (HD-SDI, SD-SDI, DV, DVI)

Remote Control and Accessories:
Remote control units for operating ancillary equipment
Monitor displays
Video printers
