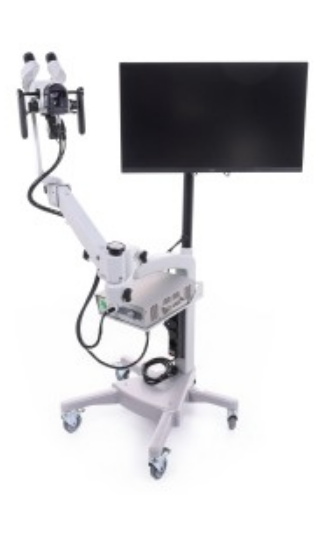

Olympus OCS-500 colposcope (4K video channel)

Technical condition: very good,
Visual condition: very good,
Real product photos,
Japanese production,
Power supply: 230 V,
Frequency: 50/60 Hz,
OLYMPUS OCS - 500 provides high-quality digital images, extended magnification and smooth adjustment,

Characteristics:
Sophisticated optical performance,
One-handed operation - has several different control knobs grouped closely together,
so you can adjust the field of view, magnification or focus with one hand,
using the left or right handle,
Colposcopy and hysteroscopy in one system,
Digital documentation - image recording using a built-in CMOS 4K digital camera ,

Technical specifications:
Eyepiece:
Magnification: 10x,
Field number: 22,
Diopter correction: –5 – + 5 m -1,
Magnification ratio: 1:06,
Detachable green filter,
Focusing:
Focus system: adjustable focal length,
Drive system: manual drive by turning the knob,
Focus adjustment range: 220 - 350 mm,
Enlargements:
WD220: 3.7 – 23.4 x,
WD300: 3.0 – 18.8 x,
WD350: 2.7 – 16.9 x,
View:
WD220: 58.5 – 9.3 mm,
WD300: 73.1 – 11.6 mm,
WD350: 82.4 – 13.1 mm,
Binocular tube inclination: 10° up and 30° down relative to the horizontal optical axis of observation,
Vertical arm movement range: 300 mm,
Arm rotation range: 270°,

Colposcope equipped with:
Microscope camera:
Sensor: 1/1.8 inch, 8.29 megapixel CMOS sensor,
Pixel size: 2.0µm × 2.0µm,
HDMI output: 3840x2160 30 frames/1920x1080 60 frames,
Lens interface: C/CS,
Exposure : Automatic/Manual,
Exposure Compensation : Supported,
White Balance: Auto/Manual, Supports Adjustment: R/G/B,
Remote control,

AOC U27B3M Monitor:
Screen: 27" inches, 3840 x 2160px, VA
Image refresh rate [Hz]: 60,
Screen brightness [cd/m2]: 300,
Screen aspect ratio: 16:9,
Sync technology: Adaptive-Sync,
Vertical viewing angle: 178°,
Horizontal viewing angle: 178°,

Olympus CLH-SC light source:
Light source: 15 V / 150 W halogen lamp,
Lamp life: approx. 50 hours of continuous operation,
Possibility of smooth regulation of light intensity,

The structure is placed on a mobile base equipped with 5 wheels with a built-in brake,
Included in the set:
Power cord,
Remote control for the camera,
SanDisk 32GB memory card (with adapter),

Dimensions:
Overall: 77 x 70 x 133 cm,
Base: Ø 70 cm,

Weight: 60 KG,
Cat 03,
It has a current inspection and is ready to work,
Issued Technical Passport (Service Report) valid for 12 months
