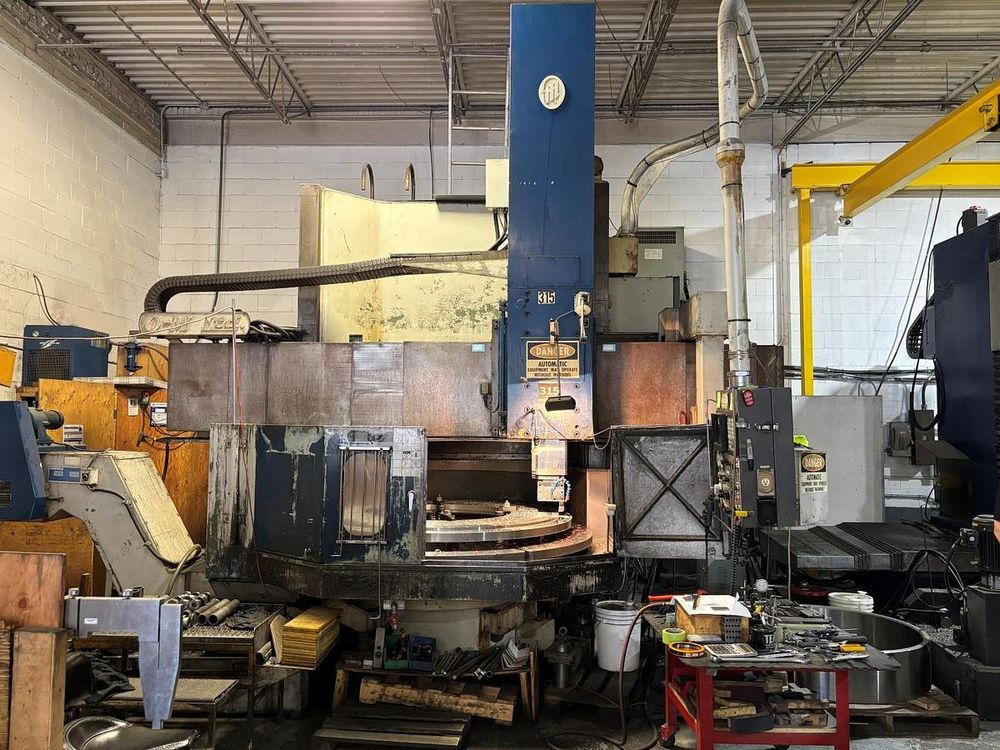

Om VT5-16N Vertical travel 35.5"

Ref : 2733681-3-GO

Condition : Used

Manufacturer : Om

Model : VT5-16N

Short Description : Vertical travel 35.5"

Year(s) : 1988

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Horizontal travel from right to table center 53"
Horizontal travel from left to table center 35.5"
Feed rate 0.0001" – 20 inch/rev
Rapid traverse 393 IPM
Max swing 78.75"
Max turning diameter 67"
Max turning height 63"
Table diameter 63"
Max workpiece weight 15400 RPM
Max torque 14770 ft/lbs
Max cutting force 5500 lbs
Machine weight approx. 41800 lbs
63" 4-jaw chuck
80" extension plate
Chip conveyor
Coolant tank
Misc tool holders
