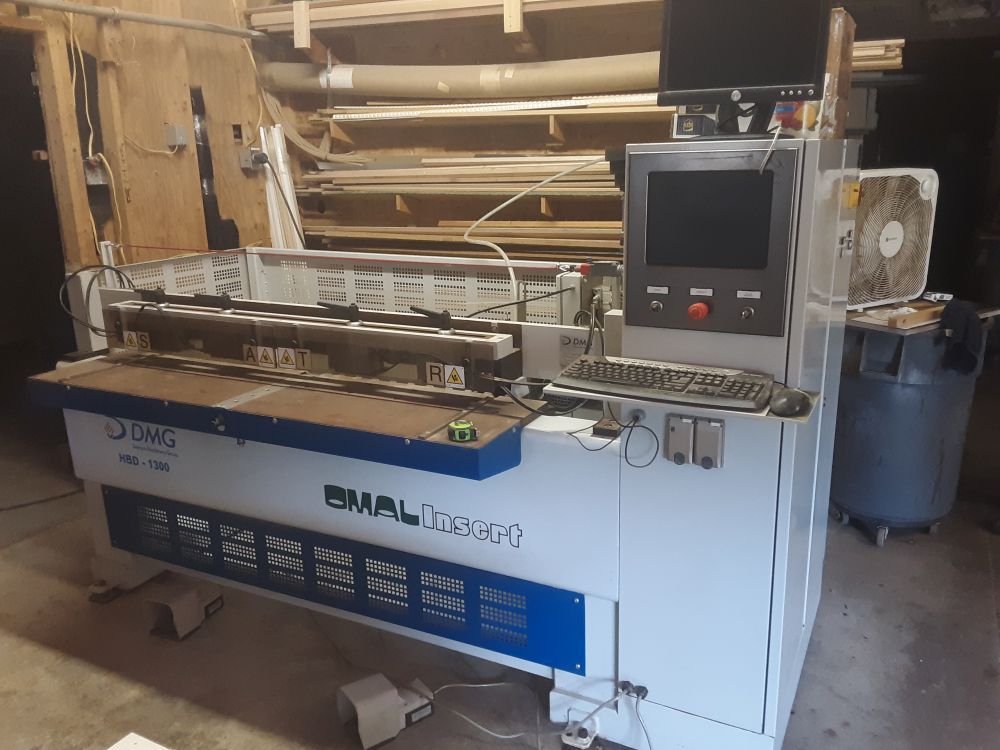

Omal HBD 1300

CNC Bore - Glue - Dowel Insertion Machine
Technical Data:
- Width: “X” 1300 mm (51”)
- Depth: “Y” 40 mm (1.57”)
- Vertical: “Z” 40 mm (1.57”)
- Voltage: 460V (220V)/60hz/3~
- Net weight: ~1200 kg (~2650 lbs)

Omal Insert 1300 CNC Bore-Glue-Dowel Machine
PTP drilling gluing insertion machine
- CNC Controlled X axis

Working area: 1300 mm 650x2 w/ 4 working areas
Part thickness: 10mm-40mm
1 horizontal drilling unit
1 glue (squirt) and dowel insertion unit
2- 8 litres glue/water tanks w/membrane glue pump
Shipping Footprint: 8 (length) x 5 (width) x 6 (height)
